| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 2000–20000USD |
| Payment Terms: | T/T 50% in advance,50% before shipment |
| Supply Ability: | 150 sets / month |

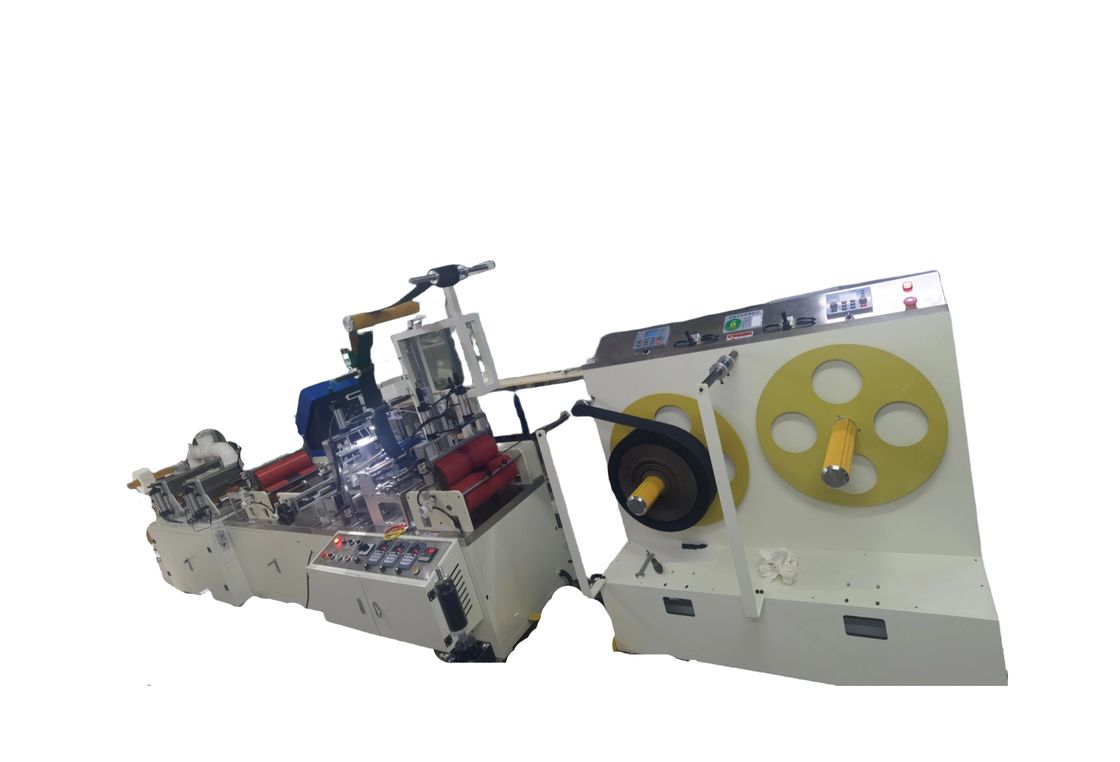

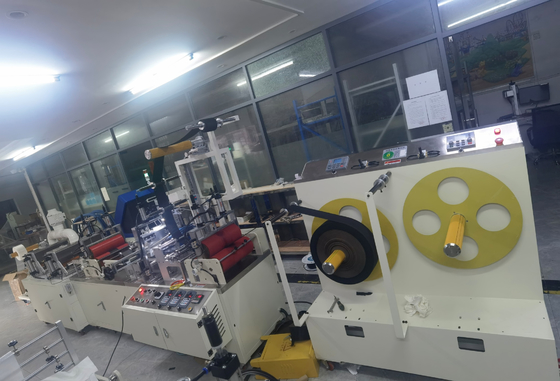

Precision Hook and Loop Laminating Machine for Stable Operation
The Hook and Loop Backside Hot Melt Adhesive Coating Machine is designed for applying hot melt adhesive to the backside of hook and loop tapes or other strip materials. It is widely used in garment, footwear, luggage, medical, and sports equipment industries. Equipped with precise tension and speed control, length setting, automatic cutting, and torque-controlled winding, this machine delivers fully automated, high-efficiency production, making it one of the most ideal hook and loop adhesive coating machines in the domestic market.
| Model: | HY-VT220 |
| Linear speed: | 10～50m/min |
| Max.tension of yam: | 500N |
| Tape qty: | 1-4pc |
| Max width: | 220mm |
| Hot melt adhesive capacity: | 60kg |
| Reverse motor: | 220v,200w |
| Pump motor: | 380v,0.75*2kw |
| Tank heating power: | 380v,20kw |
| Spray gun heating power: | 3.5kw |
| Output motor | 380v,0.75kw |
| Winding motor | 220v,1.1*2kw |
| AC | 220v,0.75 |
| Control: | PLC+Frequency control |
| Air pressure: | 6bar |
| Usable area: | 8*2*2.3m |
