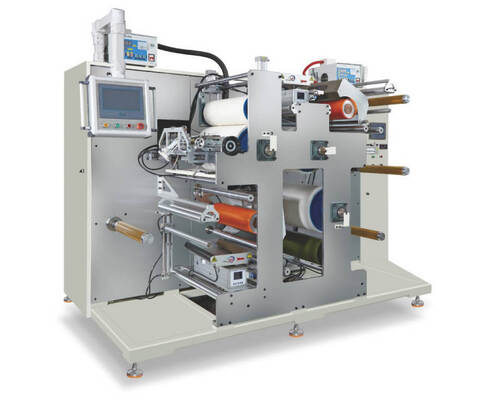

Precision Hook and Loop Laminating Machine with 10-50m/Min Speed ≤ 80 dB Noise Level and ≤ 85% RH Humidity Range
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
Precision hot melt adhesive coating machine
,50m/Min hot melt adhesive coating machine
,10m/Min hot melt coating machine
Product Description
Precision Hot Melt Adhesive Coating Machine 10-50m/Min For Stable Operation
The Hook and Loop Backside Hot Melt Adhesive Coating Machine is designed for applying hot melt adhesive to the backside of hook and loop tapes or other strip materials. It is widely used in garment, footwear, luggage, medical, and sports equipment industries. Equipped with precise tension and speed control, length setting, automatic cutting, and torque-controlled winding, this machine delivers fully automated, high-efficiency production.
Main Features
- Accurate Adhesive Coating - Ensures uniform hot melt adhesive application for stable bonding performance.
- Smart Control System - Automatic tension and speed control for consistent coating quality.
- Length Setting Function - Adjustable length setting for different production needs.
- Automatic Cutter - Cuts automatically after coating to improve efficiency and reduce manual work.
- Torque-Controlled Winding - Ensures smooth and wrinkle-free winding.
- Energy Efficient - High-efficiency heating with intelligent temperature control to reduce energy consumption.
Main Technical Parameters
| Model: | HY-VT220 |
|---|---|
| Linear speed: | 10～50m/min |
| Max.tension of yam: | 500N |
| Tape qty: | 1-4pc |
| Max width: | 220mm |
| Hot melt adhesive capacity: | 60kg |
| Reverse motor: | 220v,200w |
| Pump motor: | 380v,0.75*2kw |
| Tank heating power: | 380v,20kw |
| Spray gun heating power: | 3.5kw |
| Output motor | 380v,0.75kw |
| Winding motor | 220v,1.1*2kw |
| AC | 220v,0.75 |
| Control: | PLC+Frequency control |
| Air pressure: | 6bar |
| Usable area: | 8*2*2.3m |
