High-Efficiency Hook And Loop Brushing Machine with Two Advanced Sets of Napping Rods and Five Times Higher Output Adjustable Brushing Parameters

Brand Name:	HHD
MOQ:	1set
Price:	1000–200000USD
Payment Terms:	T/T 50% in advance,50% before shipment
Supply Ability:	150 sets / month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong Province

Applications:

Apparel, Footwear,Industrial Manufacturing

Automation Level:

Semi-automatic

Control System:

Touch Screen/ Button Operation

Frame Material:

High-Strength Steel

Control Method:

Electronic Control + Manual Adjustment

Noise Level:

≤ 80 DB

Humidity Range:

≤ 85% RH

Packaging Details:

Export Packaging

Delivery Time:

Within 20 days after downpayment

Product Description

Footwear Hook And Loop Brushing Machine With Adjustable Brushing Parameters

High-Efficiency Hook And Loop Brushing Machine

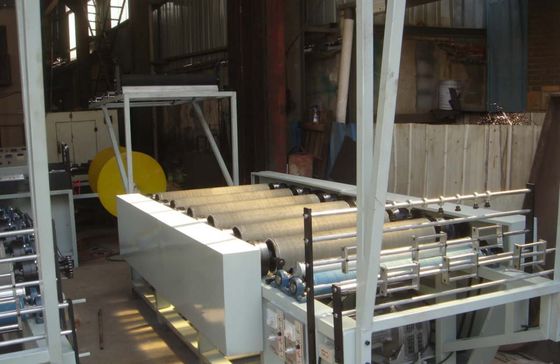

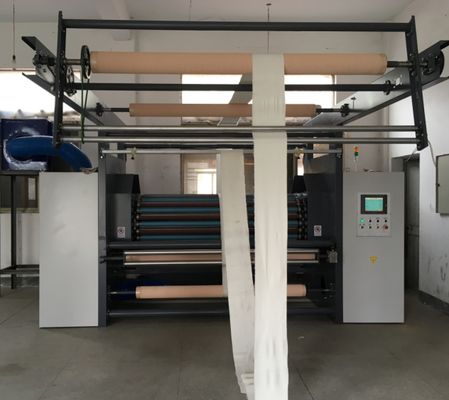

This napping machine is specially designed for processing sticky ribbons, making it an essential equipment in the hook and loop industry. It features two advanced sets of napping rods wrapped with specially treated hook surfaces, completely replacing traditional metal card clothing for improved efficiency and safety.

Key Advantages

The machine ensures gentle napping while maintaining high durability of the loop surface, with output five times higher than traditional metal card clothing machines - ideal for large-scale production.

Technical Characteristics

PLC-controlled with human-machine interface and variable inverter adjustment
Wide adjustable range for drum speed, fabric speed, fabric tension, and raising roller speed
Pneumatic-controlled V-belt drive for raising rollers maintains constant, adjustable tension
Automatic storage for 100 preset process programs
Features include zero start, automatic fabric feeding, trouble alarm and diagnosis
Capable of creating continuous raising lines or raising and shearing lines while maintaining fabric tension

Machine Technical Specifications

Item	HY-VT8024	HY-VT8030	HY-VT8036	HY-VT7024	HY-VT7036	HY-VT7042
Nominal Width (mm)	2000-3600	2000-3600	2000-3600	2000-3200	2000-3200	2000-3200
Application	∅80 with 24,30,36 rollers for super soft warp knitting short-wool industry			∅70 with 24,36,42 rollers for blanket, woolen, goral fabric, fake leather bottom cloth, and warp knitting industry
Drum Speed (r/min)	60-90 (stepless)					50-80 (stepless)
Fabric Speed (m/min)	6-40 (stepless)
Number of Raising Rollers	24	30	36	24	36	42
Roller Diameter (mm)	∅80			∅70
Motor Power (kW)	34.7 / 38.7	34.7 / 38.7	38.7	25.7 / 34.7	34.7 / 38.7	42.1
Overall Dimensions (mm)	43504690-62903000	Same as left		43504690-58903000	Same as left
