350mm Injection Hook Equipment with 90-150 kg/h Extrusion Capacity and 0.3-1.8 mm Sheet Thickness for Velcro Hook Production Line
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
Injection Moulding hook and loop machine
,350mm hook and loop machine
,150kg/h hook and loop making machine
Product Description
Injection Moulding Hook And Loop Machine 350mm With Continuous Operation Capability

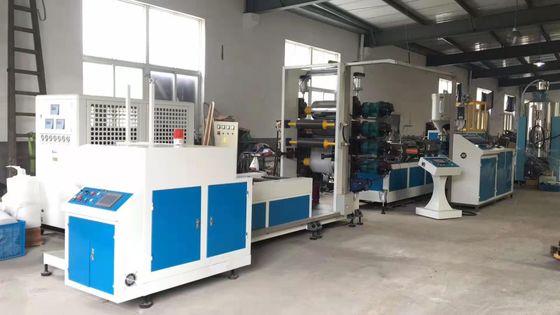

The HY-VT350 Injection Hook Equipment is a high-performance system designed for advanced Velcro Hook Production Lines. This equipment combines cutting-edge Injection Hook Extrusion Line technology with precision mold rolling mechanisms to deliver exceptional efficiency and consistent output in hook manufacturing.
Key Features
- Supports multiple materials including PP, PA6, PA66, PE, and nylon-based resins
- Fully automated continuous operation capability
- Standard line includes #2, #3, and #4 molds

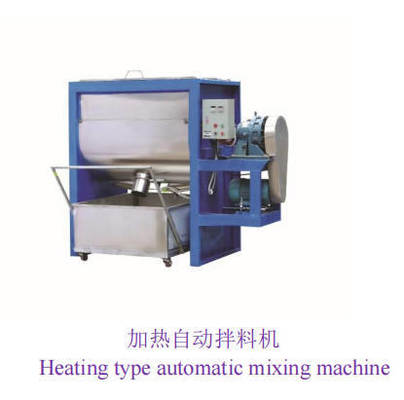

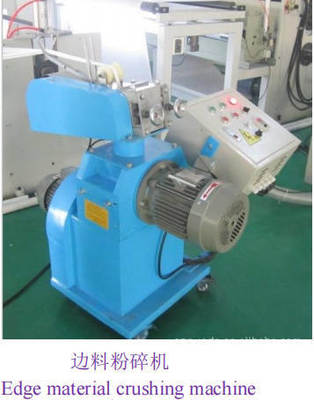

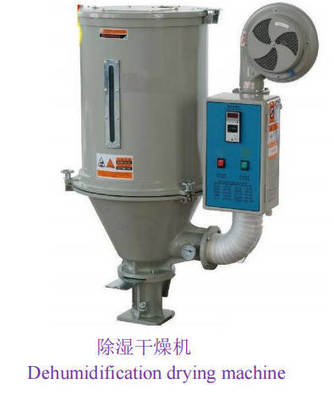

- Includes dehumidification drying machine, automatic mixing machine, and edge material crushing machine
- Powered by ABB inverters with Japan RKC PID controller
- Siemens PLC control system for intelligent operation

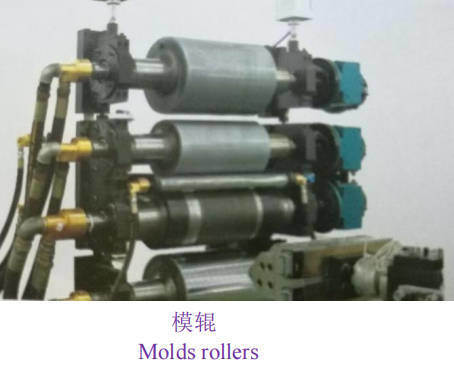

- Three-roller calendering system with quenched mirror rollers
- Water heating for thermal stability
- Hanger-type mold design with center winding system
Technical Specifications
| Model | HY-VT350 |
|---|---|
| Linear Speed | 10～25 m/min |
| Extrusion Capacity | 90-150 kg/h |
| Sheet Thickness | 0.3-1.8 mm |
| Base Sheet Minimum Thickness | 0.1 mm |
| Max Product Width | 350 mm |
| Main Motor Power | 100 kW |
| Power Consumption | 50-60 kW |
| Control System | PLC automatic control |
| Air Pressure | 6 bar |
| Machine Dimensions | 14,000 * 3,000 * 2,400 mm |
| Machine Weight | 75,000 kg |
Customization Options
The HY-VT350 can be tailored to specific production needs with available width ranges from 100-350 mm and output capacities from 5-250 kg/h. This makes it ideal for both domestic and international producers in the injection granulation and Velcro hook production sectors.
Investing in the HY-VT350 Injection Hook Equipment provides a scalable, modern, and high-efficiency solution for Velcro Hook Production Lines.
