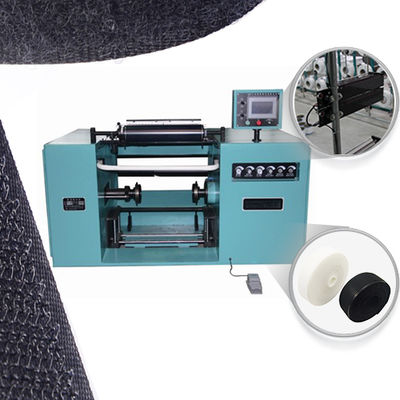

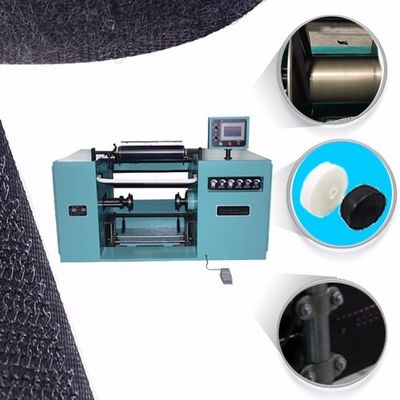

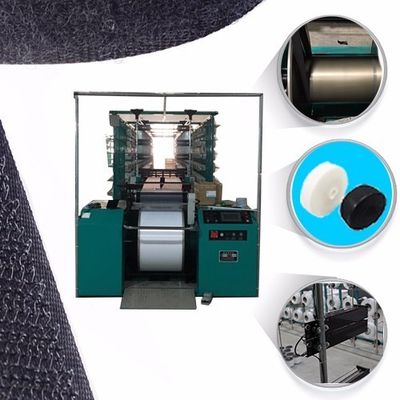

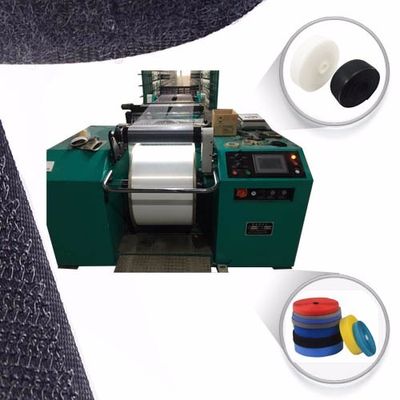

7500W High Power Warping Machine For Hook And Loop Yarn With 380 V/440 V Volt And 700*410mm Beam Type

Brand Name:	HHD
MOQ:	1set
Price:	1000–200000USD
Payment Terms:	T/T 50% in advance,50% before shipment
Supply Ability:	150 sets / month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong Province

Applications:

Apparel, Footwear,Industrial Manufacturing

Automation Level:

Semi-automatic

Control System:

Touch Screen/ Button Operation

Frame Material:

High-Strength Steel

Control Method:

Electronic Control + Manual Adjustment

Noise Level:

≤ 80 DB

Humidity Range:

≤ 85% RH

Packaging Details:

Export Packaging

Delivery Time:

Within 20 days after downpayment

Product Description

Apparel Warping Machine For Hook And Loop Yarn With Smooth Operation

Efficient warping machine designed for hook and loop yarn with smooth operation and precise control.

Main Technical Parameters

Model	HY-VT002
Main motor power	7500W
Voltage	380 V/440 V
Beam type	700*410mm
Line Speed	0~1000 M/Min.
Max. Tension of Line	500 N
Brake Torque	1600 NM
Up and Down of Beam	Pneumatic Control
Tight and Release of Beam	Pneumatic Control
Diameter of Speed Roller	120 MM
Control Type of Main Motor	Converter Control
Monitoring Way	Immediate Monitor by Microcomputer Controlled Touch Screen
Pressure of Pneumatic Source	6 Bar
Machine size	1592415002246mm
Net weight	4000kg

Main Configuration

Main Motor	WNM of China
Converter	INVT of China
Test Components A	AUTONICS of South Korea
Test Components B	Koyo of Japan
Pneumatic Components	AIRTAC of Taiwan
PLC	MITSUBISHI of JAPAN
Touch Screen	MCGS of Beijing
Operating Components	SCHNEIDER of France
Terminal Components	PHOENIXCONTACT of Germany
Bearings	NSK of Japan

Technical Specifications

The main motor is controlled by converter. The constant and reliable digital pulse close ring controlled by the PLC guarantees stable speed of winding and storing yarn.
The bracket movement of beam is pneumatically controlled, with position accurately controlled by photoelectric sensor and PLC automation, selecting different positions according to beam diameter.
The tail bracket is pneumatically controlled with center fixing shaft head, minimizing damage to inner beam caused by shift.
Main brake features pneumatic butterfly brake with heat-dissipated breaking tray and auto-compensation break pincer for stable, long-lasting operation.
Positive roller and Speed roller brakes apply different pressures according to speeds (above 200 m/min), maintaining consistent yarn tension during braking as during constant speed operation.
