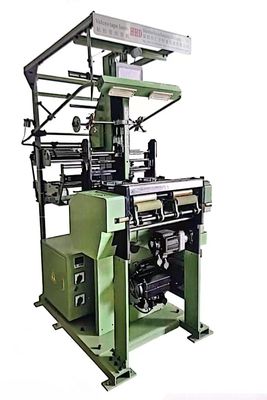

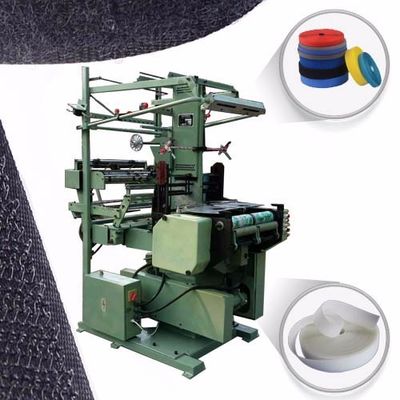

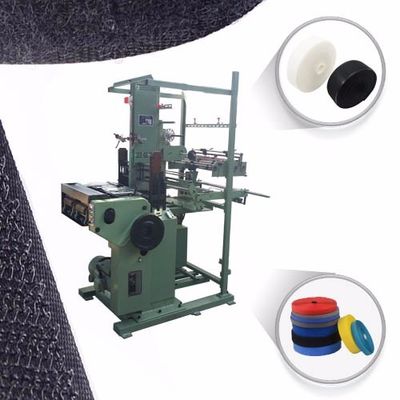

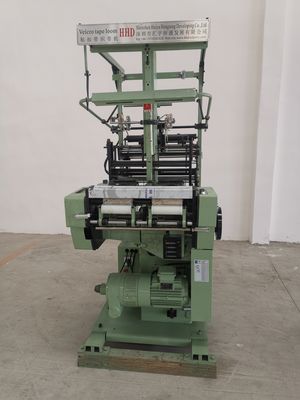

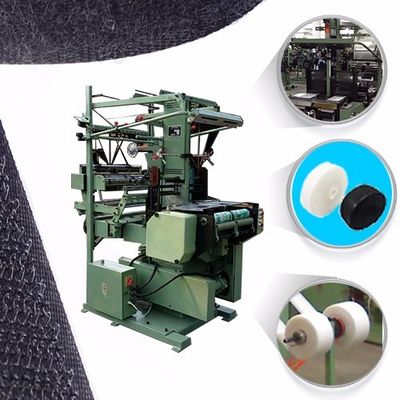

Semi-automatic Hook And Loop Needle Loom with ≤ 80 dB Noise Level and 10 Shafts for Narrow-Width Fabric Weaving

Brand Name:	HHD
MOQ:	1set
Price:	1000–200000USD
Payment Terms:	T/T 50% in advance,50% before shipment
Supply Ability:	150 sets / month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong Province

Applications:

Apparel, Footwear,Industrial Manufacturing

Automation Level:

Semi-automatic

Control System:

Touch Screen/ Button Operation

Frame Material:

High-Strength Steel

Control Method:

Electronic Control + Manual Adjustment

Noise Level:

≤ 80 DB

Humidity Range:

≤ 85% RH

Packaging Details:

Export Packaging

Delivery Time:

Within 20 days after downpayment

Product Description

Advanced Hook And Loop Needle Loom Maximizes Output with Minimal Downtime

Application

This high-performance HY shuttleless ribbon loom series includes models 2/150, 2/175, 2/220, 4/80, and 1/450. Featuring a steel reed width range of 80mm to 450mm, the machine operates with shuttleless warp yarn and transverse needles for various narrow-width fabrics. Supports up to 10 shafts, each connected to a rocker and pendant chain, with warp yarn movement speeds reaching 250-700 cycles per minute depending on fabric specifications.

Machine Characteristics

Electronic automatic weft and raw material feeding system ensures precise delivery and improved product quality
Innovative PLC and servo motor combination delivers over 30% energy savings
Infinitely variable spindle speed with micro-adjustment for all hook and loop weaving types
Electronic weft density system replaces mechanical gears, eliminating stop marks and reducing failure rates
Heavy-duty base plate ensures stable operation with low noise and minimal vibration
Microcomputer-controlled heating maintains uniform surface temperature of finished products
User-friendly touch screen control with ERP system compatibility
Advanced lever rocker mechanism with efficient pendant chain shedding system for large shed opening and easy pattern changes
Special rubber tension spring in major rocker reduces motor load for stable high-speed operation
Automatic lubrication system circulates oil to key components, reducing wear
Dual-motor brake system with fast/slow modes for fabric inspection and instant stop on yarn breakage

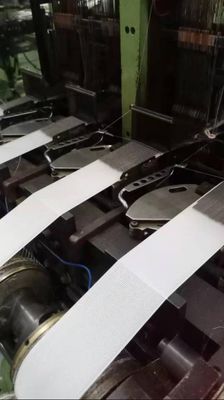

Dual-roller tape output design with new roller pressing handle prevents skidding and ensures stable output

Main Technical Parameters

Model	HY-V2/150	HY-V2/175	HY-V2/220	HY-V4/80	HY-V1/450
Number of Heads	2 heads	2 heads	2 heads	4 heads	1 head
Steel Reed Width (mm)	150	175	220	80	450
Weft Density (picks/cm)	3-40	3-40	3-40	3-40	3-40
Speed (rpm)	700	600	350	700	250
Average Output (m/h)	40-45	38-40	20-25	80-90	15-18
Yarn Break Auto Stop	Yes	Yes	Yes	Yes	Yes
Number of Shafts	10 pcs	10 pcs	10 pcs	10 pcs	10 pcs
Pattern Selection	Cam	Cam	Cam	Cam	Cam
Power (kW)	1.5	1.5	2.3	1.5	2.3
Weight (kg)	750	800	850	850	850
Machine Dimensions (L×W×H m)	3.94×1.316×2.82	3.94×1.316×2.82	3.94×1.316×2.82	3.94×1.316×2.82	3.94×1.316×2.82
Required Floor Area (m)	4.0×1.4	4.0×1.4	4.0×1.4	4.0×1.4	4.0×1.4
