160mm Injection Moulding Hook Production Line with ≤ 80 dB Noise Level and ≤ 85% RH Humidity Range

Brand Name:	HHD
MOQ:	1set
Price:	1000–200000USD
Payment Terms:	T/T 50% in advance,50% before shipment
Supply Ability:	150 sets / month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong Province

Applications:

Apparel, Footwear,Industrial Manufacturing

Automation Level:

Semi-automatic

Control System:

Touch Screen/ Button Operation

Frame Material:

High-Strength Steel

Control Method:

Electronic Control + Manual Adjustment

Noise Level:

≤ 80 DB

Humidity Range:

≤ 85% RH

Packaging Details:

Export Packaging

Delivery Time:

Within 20 days after downpayment

Product Description

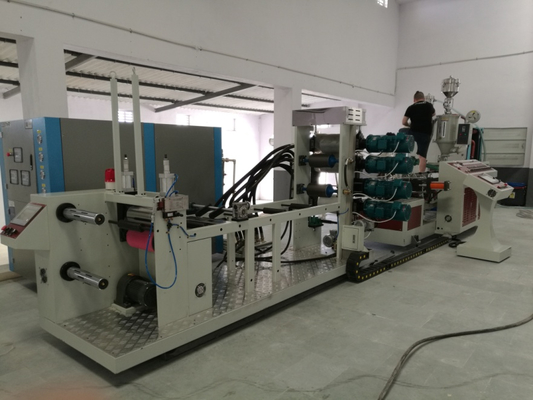

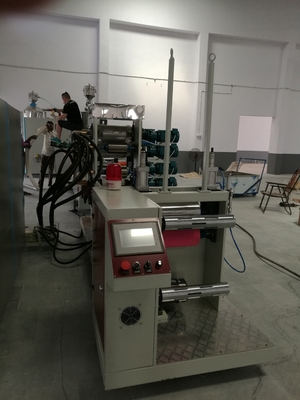

Injection Moulding Hook Production Line 160mm With Uniform Moulding Cooling Control

The HY-VT160 Injection Hook Equipment is a cutting-edge solution engineered specifically for establishing a high-efficiency Injection Velcro Hook Production Line. It integrates advanced Injection Hook Extrusion Line technologies with precise mold-rolling systems to manufacture high-quality plastic hooks used in Velcro applications.

Product Specifications

Product No.: HY-VT160
Type: Injection Hook Equipment
Compatible materials: PP, PA6, PE, PVC, TPU, and other nylon-based compounds
Width range: 100-160 mm
Output capacity: 5-250 kg/h

Standard Configuration

#2, #3, and #4 molds

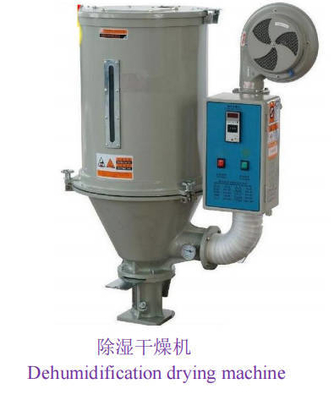

Dehumidification Drying Machine

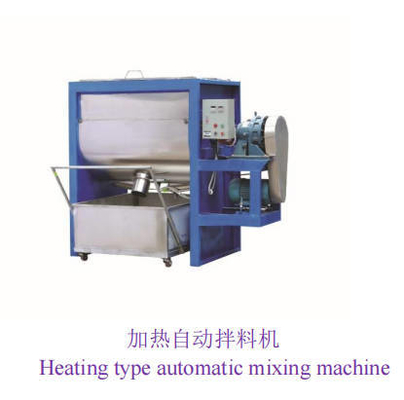

Automatic Mixing Machine

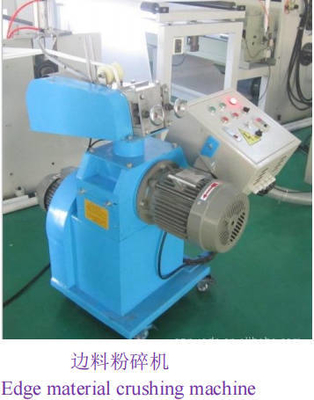

Edge Material Crushing Machine

The extrusion system is powered by ABB inverters and regulated by a Japan RKC PID controller, integrating melt pressure and temperature sensors for real-time monitoring. The main logic control is handled by a Siemens PLC, delivering superior system stability and precise operational control.

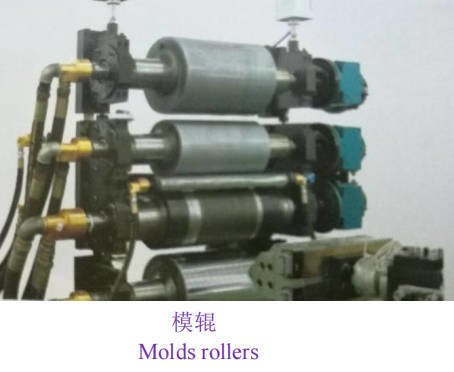

In the sheet processing section, a three-roller calender with quenched mirror rollers ensures exceptional gloss and flatness. The water-heated roller system, combined with Delta inverter-controlled drives and a center winding method, ensures uniform film output and perfect coiling alignment.

Technical Parameters

Parameter	Specification
Model	HY-VT160
Linear Speed	10-25 m/min
Extrusion Capacity	50-80 kg/h
Sheet Thickness	0.2-2 mm
Max Sheet Width	160 mm
Principal Motor Power	70 kW
Monitoring System	Transducer control
Required Air Pressure	6 bar

Whether you're scaling up or establishing a new Velcro Hook Production Line, this Injection Hook Equipment is the smart investment for automated, precise, and high-quality hook production.
