160mm Injection Moulding Hook Production Line with ≤ 80 dB Noise Level and ≤ 85% RH Humidity Range
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
Injection Moulding Hook Production Line
,160mm Hook Production Line
,80kg/h hook and loop machine
Product Description

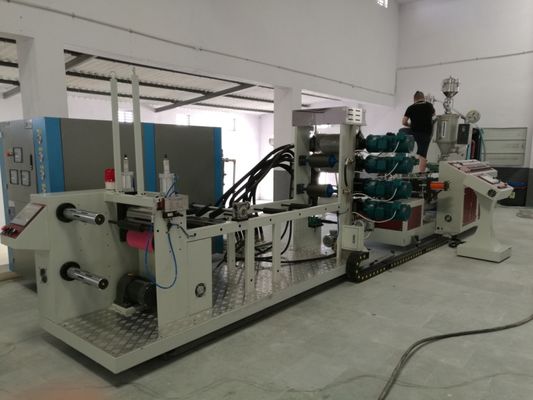

Injection Moulding Hook Production Line 160mm With Uniform Moulding Cooling Control
The HY-VT160 Injection Hook Equipment is a cutting-edge solution engineered specifically for establishing a high-efficiency Injection Velcro Hook Production Line. It integrates advanced Injection Hook Extrusion Line technologies with precise mold-rolling systems to manufacture high-quality plastic hooks used in Velcro applications.
Product Specifications
- Product No.: HY-VT160
- Type: Injection Hook Equipment
- Compatible materials: PP, PA6, PE, PVC, TPU, and other nylon-based compounds
- Width range: 100-160 mm
- Output capacity: 5-250 kg/h
Standard Configuration
- #2, #3, and #4 molds

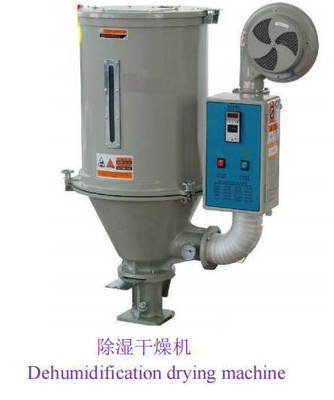

- Dehumidification Drying Machine

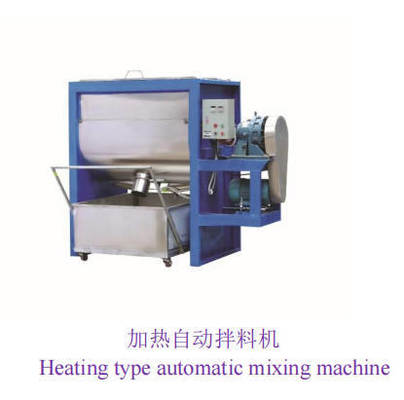

- Automatic Mixing Machine

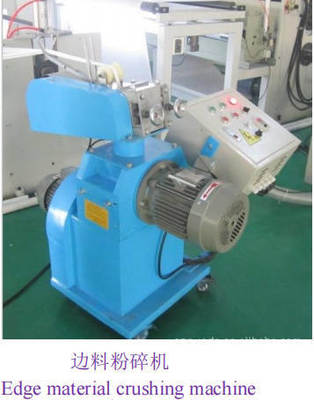

- Edge Material Crushing Machine
The extrusion system is powered by ABB inverters and regulated by a Japan RKC PID controller, integrating melt pressure and temperature sensors for real-time monitoring. The main logic control is handled by a Siemens PLC, delivering superior system stability and precise operational control.

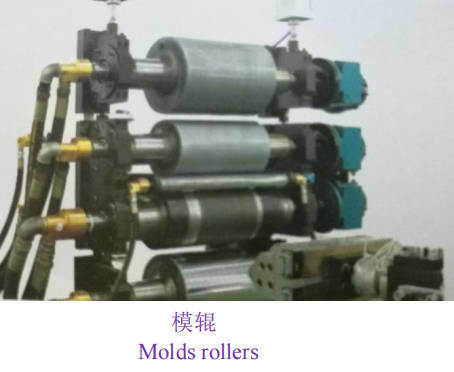

In the sheet processing section, a three-roller calender with quenched mirror rollers ensures exceptional gloss and flatness. The water-heated roller system, combined with Delta inverter-controlled drives and a center winding method, ensures uniform film output and perfect coiling alignment.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | HY-VT160 |
| Linear Speed | 10-25 m/min |
| Extrusion Capacity | 50-80 kg/h |
| Sheet Thickness | 0.2-2 mm |
| Max Sheet Width | 160 mm |
| Principal Motor Power | 70 kW |
| Monitoring System | Transducer control |
| Required Air Pressure | 6 bar |
Whether you're scaling up or establishing a new Velcro Hook Production Line, this Injection Hook Equipment is the smart investment for automated, precise, and high-quality hook production.
