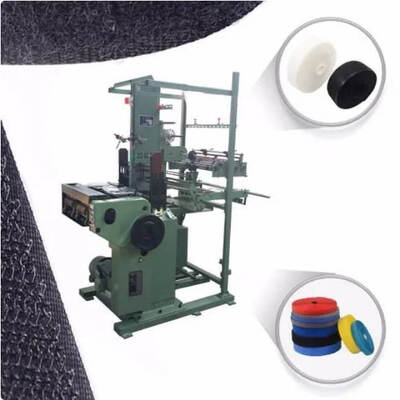

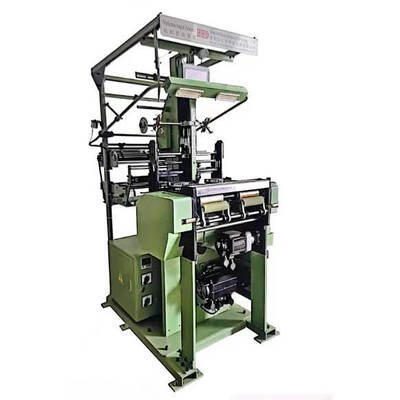

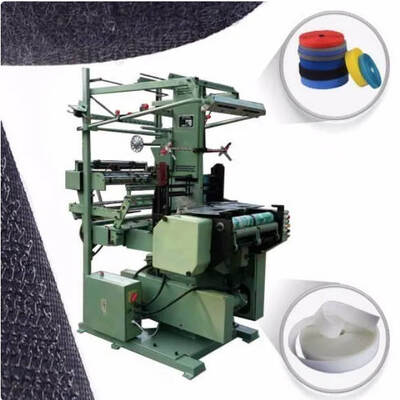

2/220 Semi-automatic Hook And Loop Needle Loom with High-Strength Steel Frame and Touch Screen Control
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
Semi-automatic Hook And Loop Needle Loom
,High-Strength Steel Frame Velcro Needle Loom
,Touch Screen Control Hook and Loop Machine
Product Description
2/220 Semi-automatic Hook And Loop Needle Loom
The 2/220 Semi-automatic Hook And Loop Needle Loom delivers advanced performance with maximum output efficiency and minimal downtime for industrial hook and loop tape production.
Application
This high-performance HY shuttleless ribbon loom series includes models 2/150, 2/175, 2/220, 4/80, and 1/450. Featuring a steel reed width range of 80mm to 450mm, the machine operates with shuttleless warp yarn and transverse needles for various narrow-width fabrics. Supports up to 10 shafts, each connected to a rocker and pendant chain, with warp yarn movement speeds reaching 250-700 cycles per minute depending on fabric specifications.
Machine Characteristics
- Electronic automatic weft and raw material feeding system ensures precise delivery and improved product quality
- Innovative PLC and servo motor combination delivers over 30% energy savings
- Infinitely variable spindle speed with micro-adjustment for all hook and loop weaving types
- Electronic weft density system replaces mechanical gears, eliminating stop marks and reducing failure rates
- Heavy-duty base plate ensures stable operation with low noise and minimal vibration
- Microcomputer-controlled heating maintains uniform surface temperature of finished products
- User-friendly touch screen control with ERP system compatibility
- Advanced lever rocker mechanism with efficient pendant chain shedding system for large shed opening and easy pattern changes
- Special rubber tension spring in major rocker reduces motor load for stable high-speed operation
- Automatic lubrication system circulates oil to key components, reducing wear
- Dual-motor brake system with fast/slow modes for fabric inspection and instant stop on yarn breakage
- Dual-roller tape output design with new roller pressing handle prevents skidding and ensures stable output
Main Technical Parameters
| Model | HY-V2/150 | HY-V2/175 | HY-V2/220 | HY-V4/80 | HY-V1/450 |
|---|---|---|---|---|---|
| Number of Heads | 2 heads | 2 heads | 2 heads | 4 heads | 1 head |
| Steel Reed Width (mm) | 150 | 175 | 220 | 80 | 450 |
| Weft Density (picks/cm) | 3-40 | 3-40 | 3-40 | 3-40 | 3-40 |
| Speed (rpm) | 700 | 600 | 350 | 700 | 250 |
| Average Output (m/h) | 40-45 | 38-40 | 20-25 | 80-90 | 15-18 |
| Yarn Break Auto Stop | Yes | Yes | Yes | Yes | Yes |
| Number of Shafts | 10 pcs | 10 pcs | 10 pcs | 10 pcs | 10 pcs |
| Pattern Selection | Cam | Cam | Cam | Cam | Cam |
| Power (kW) | 1.5 | 1.5 | 2.3 | 1.5 | 2.3 |
| Weight (kg) | 750 | 800 | 850 | 850 | 850 |
| Machine Dimensions (L*W*H m) | 3.94*1.316*2.82 | 3.94*1.316*2.82 | 3.94*1.316*2.82 | 3.94*1.316*2.82 | 3.94*1.316*2.82 |
| Required Floor Area (m) | 4.0*1.4 | 4.0*1.4 | 4.0*1.4 | 4.0*1.4 | 4.0*1.4 |
