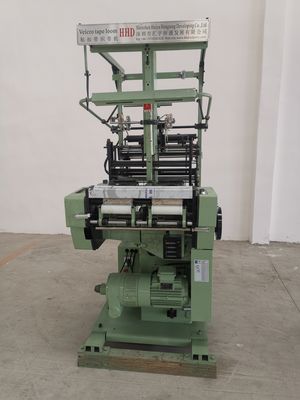

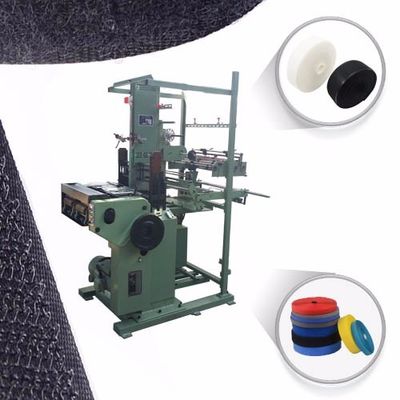

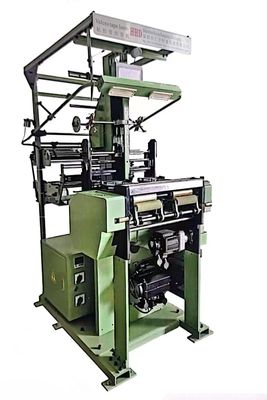

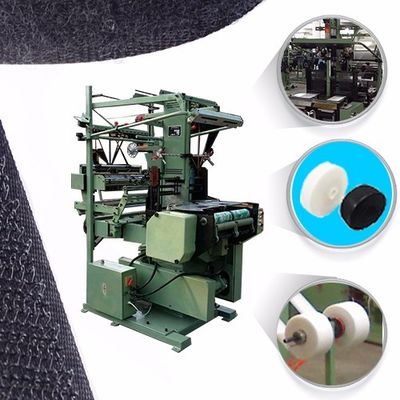

2/175 Semi-automatic Hook And Loop Needle Loom with ≤ 80 dB Noise Level and 10 Shafts for Narrow-Width Fabric Weaving
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
Semi automatic hook and loop machine
,High Speed hook and loop machine
,Apparel hook and loop making machine
Product Description
Advanced Hook And Loop Needle Loom Maximizes Output with Minimal Downtime
Application
This high-performance HY shuttleless ribbon loom series includes models 2/150, 2/175, 2/220, 4/80, and 1/450. Featuring a steel reed width range of 80mm to 450mm, the machine operates with shuttleless warp yarn and transverse needles for various narrow-width fabrics. Supports up to 10 shafts, each connected to a rocker and pendant chain, with warp yarn movement speeds reaching 250-700 cycles per minute depending on fabric specifications.
Machine Characteristics
- Electronic automatic weft and raw material feeding system ensures precise delivery and improved product quality
- Innovative PLC and servo motor combination delivers over 30% energy savings
- Infinitely variable spindle speed with micro-adjustment for all hook and loop weaving types
- Electronic weft density system replaces mechanical gears, eliminating stop marks and reducing failure rates
- Heavy-duty base plate ensures stable operation with low noise and minimal vibration
- Microcomputer-controlled heating maintains uniform surface temperature of finished products
- User-friendly touch screen control with ERP system compatibility
- Advanced lever rocker mechanism with efficient pendant chain shedding system for large shed opening and easy pattern changes
- Special rubber tension spring in major rocker reduces motor load for stable high-speed operation
- Automatic lubrication system circulates oil to key components, reducing wear
- Dual-motor brake system with fast/slow modes for fabric inspection and instant stop on yarn breakage

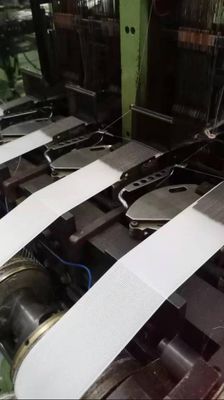

- Dual-roller tape output design with new roller pressing handle prevents skidding and ensures stable output
Main Technical Parameters
| Model | HY-V2/150 | HY-V2/175 | HY-V2/220 | HY-V4/80 | HY-V1/450 |
|---|---|---|---|---|---|
| Number of Heads | 2 heads | 2 heads | 2 heads | 4 heads | 1 head |
| Steel Reed Width (mm) | 150 | 175 | 220 | 80 | 450 |
| Weft Density (picks/cm) | 3-40 | 3-40 | 3-40 | 3-40 | 3-40 |
| Speed (rpm) | 700 | 600 | 350 | 700 | 250 |
| Average Output (m/h) | 40-45 | 38-40 | 20-25 | 80-90 | 15-18 |
| Yarn Break Auto Stop | Yes | Yes | Yes | Yes | Yes |
| Number of Shafts | 10 pcs | 10 pcs | 10 pcs | 10 pcs | 10 pcs |
| Pattern Selection | Cam | Cam | Cam | Cam | Cam |
| Power (kW) | 1.5 | 1.5 | 2.3 | 1.5 | 2.3 |
| Weight (kg) | 750 | 800 | 850 | 850 | 850 |
| Machine Dimensions (L*W*H m) | 3.94*1.316*2.82 | 3.94*1.316*2.82 | 3.94*1.316*2.82 | 3.94*1.316*2.82 | 3.94*1.316*2.82 |
| Required Floor Area (m) | 4.0*1.4 | 4.0*1.4 | 4.0*1.4 | 4.0*1.4 | 4.0*1.4 |
