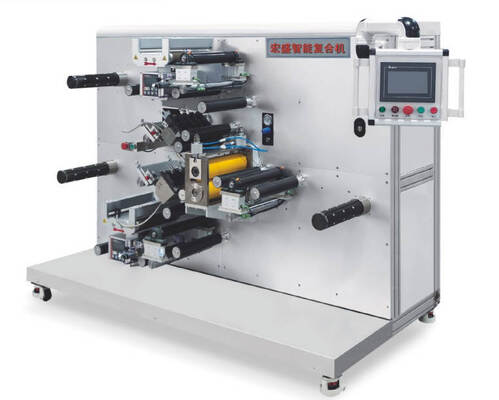

High-Speed Intelligent Laminating Machine with Wide Material Compatibility for Hook And Loop Applications
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
High-Speed Laminating Machine
,Intelligent Control System Laminating Machine
,Wide Material Compatibility Hook And Loop Machine
Product Description
Smart High-Speed Lamination and Adhesive Coating System
Product Overview
The High-Speed Intelligent Laminating Machine is engineered for efficient and stable composite processing of various roll and sheet materials. Equipped with an advanced intelligent control system, the machine ensures precise glue coating, consistent lamination quality, and smooth high-speed unwinding/winding. It is widely applicable to materials such as magic tape, non-woven fabric, release paper, films, and fiber fabrics, making it ideal for packaging, stationery, industrial accessories, daily-use products, and more.
Key Features & Advantages
- Intelligent Control System
Fully visual interface with real-time monitoring, fault alerts, and precise parameter adjustment. - High-Speed Lamination
Production speed up to 150 m/min, ensuring high-volume continuous operation. - Wide Material Compatibility
Suitable for paper, film, non-woven fabric, fiber cloth, and other substrates. - Precision Glue Application
Slit scraper or fiber spray glue system (optional) for uniform coating and strong adhesion. - Efficient Unwinding/Winding System
Equipped with 3-inch air-expansion shafts to handle large roll diameters smoothly. - Energy-Efficient Design
Fast-response hot-melt adhesive system ensures stable melting performance with reduced energy use. - Compact Footprint
Machine size 2000*1000*1500mm fits various factory layouts.
Technical Specifications
| Adhesive Type | Reactive hot-melt / RX-N8 |
|---|---|
| Operating Temperature | ≤250°C |
| Application Type | Continuous or intermittent |
| Coating Speed | 1–150 m/min |
| Unwinding Diameter | 400 mm (Two 3-inch air shafts) |
| Winding Diameter | 500 mm (One 3-inch air shaft) |
| Applicable Substrates |
Paper: 45–120g Film: 15–90 microns Non-woven fabric: ≥10g |
| Coating Width | 250mm optional; 224mm scraper/fiber spraying |
| Glue Weight |
Copper sheet scraping: 10–250g/m² Fiber spraying: approx. 200g/m² |
| Power Supply | Three-phase 380V/50HZ |
| Machine Dimensions | 2000*1000*1500mm |
Applications
Magic tape composite processing
Packaging material lamination
Release film & protective film lamination
Non-woven product processing
Industrial auxiliary material lamination
Industries Served
Packaging
Daily Goods
Industrial Manufacturing
Creative Products
Household Items
Textiles & Auxiliary Materials
