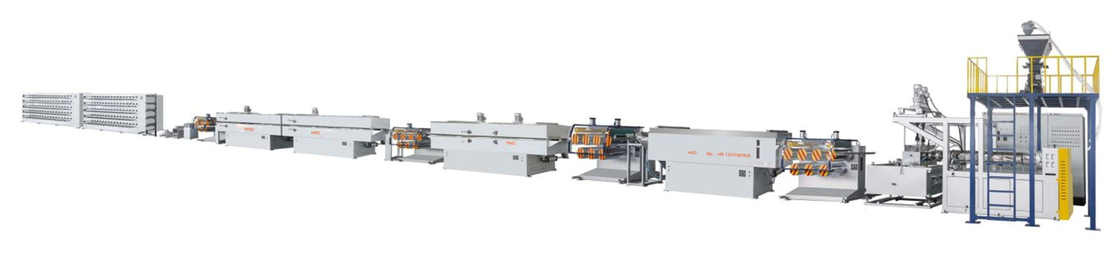

Industrial Monofilament Extruding Machine With High Throughput
The Monofilament Extruding Machine is engineered with advanced extrusion technology, designed specifically for producing high-quality monofilament products. The machine melts plastic raw materials through a precision screw and extrudes them through a specialized die head to form uniform, continuous fine filaments. These monofilaments are widely used in fishing nets, brush bristles, industrial filtration materials, sewing threads, and many other applications.
High Efficiency & Stability: Equipped with a high-performance screw and variable frequency drive motor to ensure smooth and stable operation with consistent product quality.
Precise Control: Integrated with intelligent pressure sensors and PID temperature control systems for accurate melt pressure and temperature regulation, improving final product consistency.
Energy Saving & Environmentally Friendly: Features water-cooling and air-cooling systems that reduce energy consumption and provide a safe, eco-friendly production environment.
Versatile Die Head: Supports multiple spinneret specifications with easy changeover to meet various monofilament diameter requirements.
Complete Drawing & Setting System: Comes with multiple sets of precision take-off rollers and hot air ovens to ensure excellent filament strength and dimensional stability.
Fishing net monofilaments
Industrial brush filaments
Filtration material monofilaments
Sewing thread and weaving materials
Other high-performance engineering plastic filaments
Screw diameter of 70 mm with a length-to-diameter ratio of 30:1, suitable for various plastic raw materials
Powerful 30 kW main motor with frequency conversion for excellent performance
Precision metering pump and melt pressure feedback system ensure extrusion stability
304 stainless steel cooling water tank and intelligent temperature control system ensure reliable long-term operation
| 1 | Machine Direction | Pending |
| 2 | Voltage | 380V 50Hz 3 Phase |
| 2 | Product | Monofilament for Magic Stick |
| 3 | Raw Material | PA66 Virgin |
| 4 | Mono. Diameter | Ø0.16-0.22mm |
Main Technical Parameters and Configuration List
Part 1: Extruder (1 Set)
Screw Diameter & L/D Ratio: Ø70 mm, 30:1
Screw Speed: 0-80 RPM
Barrel & Screw Material: 38CrMoAla
Main Motor: 30 kW (Siemens Motor, China)
AC Motor + Frequency conversion control
Hard Tooth Reducer: ZLYJ200-16-I, Gear Ratio: 16:1
Melt Pressure Feedback Control: Pressure sensor + controller (RKC)
Feed Throat Barrel Cooling: Water Cooling Jacket Type
Barrel cooling system with over temperature system using blower (120W x 4)
Part 2: Die Head (1 Set)
Single Die Head
Metering Spin Pump: 30 cc
Gear Pump Driving Motor: 3 kW AC motor
Spinneret Number: 2 pcs (provided free with machine)
Melt Pressure Sensor & Controller: 2 sets (China made)
Part 3: Cooling Water Tank (1 Set)
Tank Size (L x W x D): 1400 x 1050 x 560 mm
Tank Material: 304 Stainless Steel
Heating Capacity: 7.5 kW (Pipe Heater)
Tank Side-way Movement on Rail, Height Adjustable
Part 4: 7-Roller Take-Off Unit A (1 Set) with Safety Guard Cover
Roller Size: ø268 x 620 mm x 7 pcs
Roller Surface: Steel rollers with hard chromium plating
Driving Motor: 4 kW AC motor with frequency conversion control
Pneumatic Rubber Roller: 1 pc
Bearing Lubrication: Oil bath lubrication through oil pump
Control Panel: Speed meter (m/min), On/Off switch, Emergency stop
Part 5: Hot Water Tank (1 Set) Overflow Type
Tank Length: 4000 mm
Heater Capacity: 27 kW, with insulation layer at bottom
Inner Tank Material: 304 Stainless Steel
Auto Thermo Control: Digital PID controller (RKC)
Circulating Water Pump: 2.2 kW
Part 6: Water Removal System (1 Set)
Suction Blower Power: 3 kW
Part 7: 7-Roller Take-Off Unit B (1 Set) with Safety Guard Cover
Roller Size: ø268 x 620 mm x 7 pcs
Roller Surface: Steel rollers with hard chromium plating
Driving Motor: 7.5 kW AC motor with frequency conversion control
Pneumatic Rubber Roller: 1 pc
Bearing Lubrication: Oil bath lubrication through oil pump
Part 8: Hot Air Oven for Stretching (1 Set)
Structure: Single layer type
Oven Length: 4500 mm
Heater Capacity: 18 kW
Circulation Motor: 2.2 kW frequency controlled
Auto Thermo Control: Digital PID controller (RKC)
Part 9: 7-Roller Take-Off Unit C (1 Set) with Safety Guard Cover
Roller Size: ø268 x 620 mm x 7 pcs
Roller Surface: Steel rollers with hard chromium plating
Driving Motor: 7.5 kW AC motor with frequency conversion control
Pneumatic Rubber Roller: 1 pc
Bearing Lubrication: Oil bath lubrication through oil pump
Part 10: Hot Air Oven for Setting (2 Sets)
Structure: Single layer type
Oven Length: 4000 mm
Heater Capacity: 18 kW
Auto Thermo Control: RKC controller
Blower: 2.2 kW frequency controlled
Part 11: Oiling Machine (1 Set)
Part 12: 5-Roller Take-Off Unit D (1 Set) with Safety Guard Cover
Roller Size: ø268 x 620 mm x 5 pcs
Roller Surface: Steel rollers with hard chromium plating
Driving Motor: 5.5 kW AC motor with frequency conversion control
Bearing Lubrication: Oil bath lubrication through oil pump
Pneumatic Rubber Roller: 1 pc
Control Panel: Speed meter (m/min), fine tuning knob, On/Off switch, Emergency brake
Part 14: Waste Yarn Winder (1 Set)
Torque Motor: 100 Kg.cm
Part 15: Winding Machine (A) with 160 Spindles
Spindle Layout: 5 rows x 16 ranks x 2 groups
Spindle Shaft: Samples provided by customer
Single Spindle Torque Motor: 5 Kg.cm
Traverse Motor Power: 3 kW
Traverse System: Ball bearing screw with AC motor and frequency conversion control
