1800W Small Rolling Cutting Machine with Adjustable Tension Control and Touch Screen Operation

Brand Name:	HHD
MOQ:	1set
Price:	1000–200000USD
Payment Terms:	T/T 50% in advance,50% before shipment
Supply Ability:	150 sets / month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong Province

Applications:

Apparel, Footwear,Industrial Manufacturing

Automation Level:

Semi-automatic

Control System:

Touch Screen/ Button Operation

Frame Material:

High-Strength Steel

Control Method:

Electronic Control + Manual Adjustment

Noise Level:

≤ 80 DB

Humidity Range:

≤ 85% RH

Packaging Details:

Export Packaging

Delivery Time:

Within 20 days after downpayment

Product Description

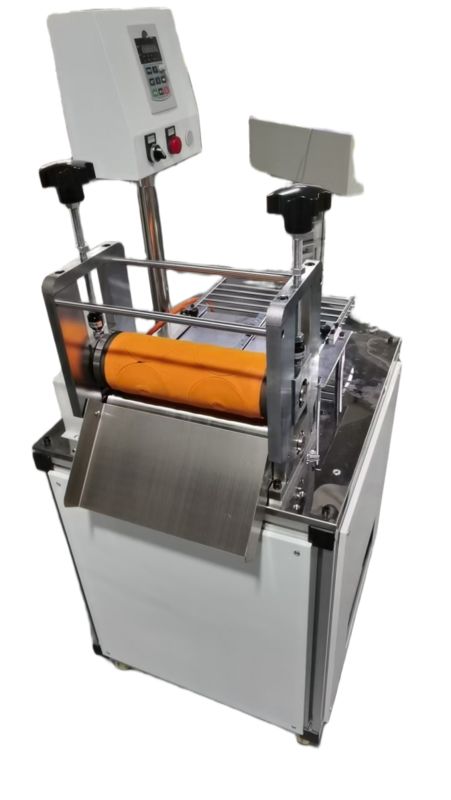

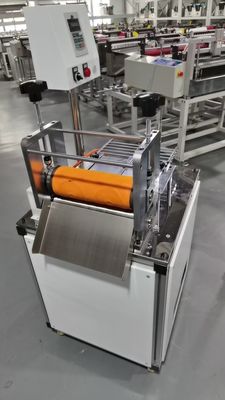

1800W Small Rolling Cutting Machine With Adjustable Tension Control

Product Description

Reliable Small Rolling Cutting Machine with Adjustable Tension Control. Designed for small batch production and sample cutting, this machine is suitable for efficient cutting of fabrics, non-woven fabrics, leather, plastic films, hook and loop tapes (Velcro), adhesive tapes, and other thin roll materials. Compact in size and easy to operate, it is ideal for laboratories, small workshops, or mobile operations, meeting precise cutting requirements for various materials.

Main Features

Compact Size, Space-Saving - Compact design for easy installation and mobility.
Easy Operation - Equipped with a normal panel for simple adjustment and use.
High-Speed Cutting - Maximum speed up to 50 meters/min to meet diverse production needs.
High Cutting Precision - Uses rotary drum blades to ensure smooth, burr-free cuts.
Wide Application Range - Suitable for continuous cutting of various thin roll materials.
Energy Efficient - Low power motor for economical operation.

Main Parameters

Model	HY-300R
Roller Diameter	300-500 mm
Speed	0-50 m/min
Control Type	Normal panel
Air Pressure	6 Bar
Main Motor Power	1800 W
Voltage	220 V
Machine Size	1200 * 600 * 1400 mm
Net Weight	125 / 179 kg
