High Stability Dewater Machine with 900r/Min and 750r/Min Speeds for Textile Water Extraction
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
Industrial dewater machine
,900r/Min Industrial dewater machine
,750r/Min de watering machine
Product Description
High Stability Industrial Dewater Machine 900r/Min 750r/Min Apparel Footwear
Product Description
The Dewater Machine features a standard structure constructed entirely from high-quality stainless steel, offering exceptional wear resistance and efficient water extraction. Its robust design ensures long service life even under high-intensity industrial use.
Operation is simple and automated: open the door, load the material, close the door, and set the dewatering time (typically 10 minutes). The machine then automatically completes the process with high efficiency and minimal supervision.
This versatile equipment is compatible with various materials including jeans, cotton fabrics, wool, and a wide range of textile products. Our standard motor operates at 380V, 50Hz, with customizable voltage and frequency options available.
Key Features

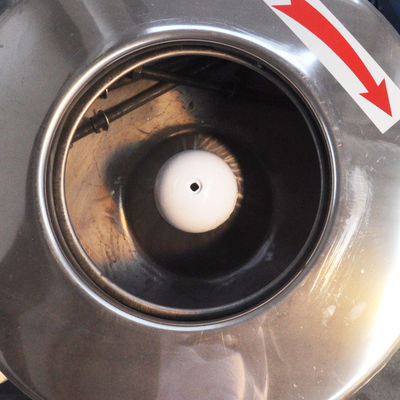

- Fully stainless steel inner and outer drums with mirror-polished surfaces for corrosion resistance and zero fabric damage
- Secure stainless-steel locking mechanisms on inner drum gates with electronic safety locks on outer covers
- Triangular belt transmission design ensures stable, low-vibration operation and long-term durability
- Widely used in blanching/dyeing factories, hotels, military facilities, hospitals, and textile enterprises
Technical Specifications
| Model | Diameter | Capacity | Power | Speed | Net Weight | Size |
|---|---|---|---|---|---|---|
| HY-VT500 | 500 mm | 25 kg | 1.1 kW | 900 r/min | 250 kg | 950 × 950 × 650 mm |
| HY-VT600 | 600 mm | 40 kg | 2.2 kW | 900 r/min | 400 kg | 1000 × 1000 × 750 mm |
| HY-VT800 | 800 mm | 80 kg | 4.0 kW | 900 r/min | 850 kg | 1500 × 1500 × 900 mm |
| HY-VT1000 | 1000 mm | 130 kg | 5.5 kW | 900 r/min | 1300 kg | 1700 × 1700 × 925 mm |
| HY-VT1200 | 1200 mm | 220 kg | 7.5 kW | 750 r/min | 1800 kg | 1900 × 1900 × 980 mm |
| HY-VT1500 | 1500 mm | 600 kg | 10.0 kW | 750 r/min | 2800 kg | 2550 × 1950 × 1400 mm |
