High Temperature Dyeing Machine with 321 Stainless Steel Body and 304 Stainless Steel Carrier for ≤0.4 MPa Working Pressure
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
High Temperature dyeing machine
,Vertical cylindrical dyeing machine
,Stainless Steel dyeing machines
Product Description
High Temperature Dyeing Machine With Precision Temperature Control
Product Description
This industrial dyeing machine features precision temperature control for consistent, high-quality results in textile processing applications.
Application
Designed for dyeing, boiling, refining, and blanching operations on:
- Twisted yarns and yarn bobbins
- Loose fibers (cotton, feather, or synthetic materials)
Working Principle
- Materials loaded into dye beck with continuous heated dye liquor circulation
- Reversing mechanism ensures even dyeing at preset temperature and time
- Compressed air raises boiling point above 98°C for optimal operation
- Compact design with low liquor ratio and high automation
- High-efficiency, corrosion-resistant two-way centrifugal pump
Main Technical Parameters
| Item | Specification |
|---|---|

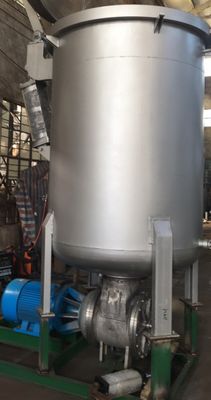

| Machine Type | Vertical cylindrical |
| Body Material | 321 Stainless Steel, 4 mm |

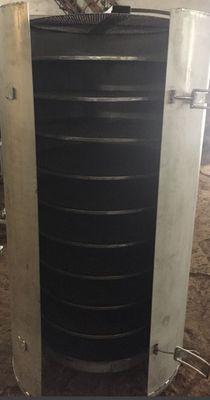

| Carrier Material | 304 Stainless Steel, 3 mm / 2.5 mm |
| Working Pressure | ≤0.4 MPa (Gauge) |
| Working Medium | Dye liquor, Steam |
| Heat Exchange Method | Bottom-mounted coil tube for indirect steam or water heating/cooling |
| Steam Pressure | 0.5 MPa (Gauge) |
| Cooling Water Pressure | 0.1-0.5 MPa (Gauge) |
| Pressurizing Mode | Pneumatic compression for small/medium bath; auxiliary pump pressurizing when full |
| Dye Liquor Circulation | Two-way circulation with forced centrifugal pump |
| Transmission | Direct-drive motor |
| Notch Seal Form | Pressure self-type or gas-top |
| Slot Cover Opening | Pneumatic fast-switching cylinder with safety interlock and power cut-off |
| Main Equipment Material | 1Cr18Ni9Ti |
| Control System | Programmable temperature, dye liquor flow control, liquor ratio, and level control |
Models
| Model | HY-VT008 | HY-VT008-1 |
|---|---|---|
| Body Diameter | Ø900 mm | Ø900 mm |
| Carrier Size | Ø800*160 mm | Ø800*160 mm |
| Capacity | 5 rollers | 10 rollers |
| Steam Valve | Ø25 mm | Ø25 mm |
| Inlet Valve | Ø40 mm | Ø50 mm |
| Drain Valve | Ø50 mm | Ø65 mm |
| Pump Type | Low head, large flow | Low head, large flow |
| Voltage | 380 V / 440 V | 380 V / 440 V |
| Power | 3 kW / 7.5 kW | 5.5 kW / 11 kW |
| Pump Flow Rate | 100 t/h / 70 t/h | 130 t/h / 80 t/h |
| Pump Lift | 5 m / 16 m | 8 m / 16 m |
| Machine Size | Ø900*2600 mm | Ø900*3200 mm |
| Weight | 1600 kg | 2000 kg |
