| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 2000–20000USD |
| Payment Terms: | T/T 50% in advance,50% before shipment |
| Supply Ability: | 150 sets / month |

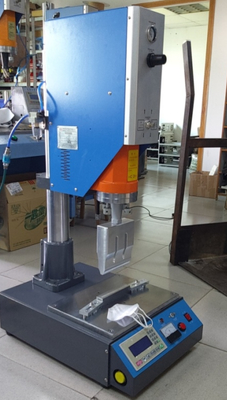

High-Precision Ultrasonic Welding Machine with Adjustable Frequency and Power
The HY-1526 Ultrasonic welding machine boasts high power output and a four-point balance adjustment system, which ensures precise alignment and stability during operation. The horn adjustment is designed for convenience, allowing quick and accurate calibration to meet various welding requirements.
Its sheet metal welded square column structure effectively prevents any leaning or deformation during heavy-duty use, enhancing machine durability and operational safety. This structural design provides a robust foundation for consistent welding quality over long-term production cycles.
Equipped with an automatic overload protection device, the machine safeguards its electrical components and mechanical parts from damage caused by excessive load or abnormal conditions, thereby extending the machine's service life and reducing maintenance costs.
Utilizing imported high-quality converters and steel boosters, the machine guarantees stable and durable performance under continuous operation, providing reliable power delivery and consistent welding results.
Widely applied in foreign-owned enterprises, this machine is recognized for its excellent performance, reliability, and adaptability across various industrial welding applications.
| Model: | HY-VT010 |
|---|---|
| Frequency: | 15KHz |
| Output power: | 2600W |
| Input Voltage: | AC220V±10% |
| Length of welding stroke: | 80mm |
| Welding beat: | ≥ 2000/H |
| Welding time: | 0.01-9.99sec |
| Welding area: | Φ250mm |
| Air pressure | 0.15-0.7MPa |
| Machine size: | 650*400*1180mm |
| Net weight: | 102KG |
