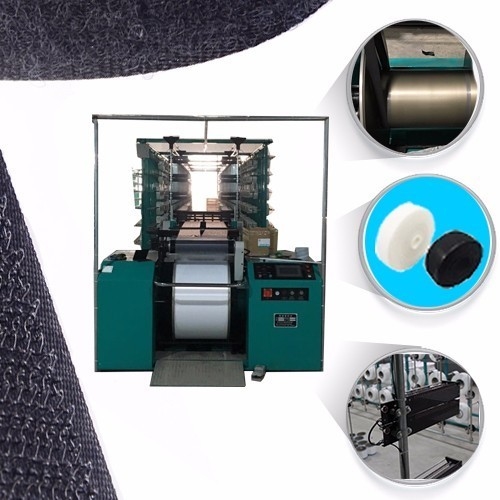

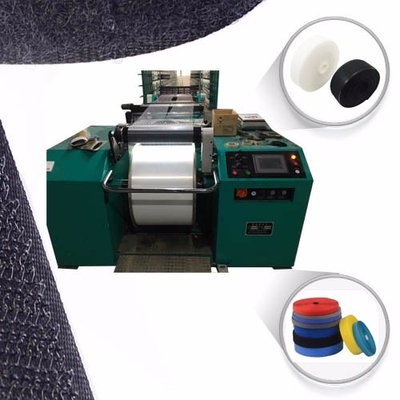

Apparel Warping Machine For Hook And Loop Yarn With Smooth Operation

Brand Name:	HHD
MOQ:	1set
Price:	2000–20000USD
Payment Terms:	T/T 50% in advance,50% before shipment
Supply Ability:	150 sets / month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong Province

Applications:

Apparel, Footwear,Industrial Manufacturing

Automation Level:

Semi-automatic

Control System:

Touch Screen/ Button Operation

Frame Material:

High-Strength Steel

Control Method:

Electronic Control + Manual Adjustment

Noise Level:

≤ 80 DB

Humidity Range:

≤ 85% RH

Packaging Details:

Export Packaging

Delivery Time:

Within 20 days after downpayment

Product Description

Efficient Warping Machine For Hook And Loop Yarn With Smooth Operation

Main Technical Parameters:

Model:	HY-VT002
Mani motor power:	7500W
Volt	380 V/440 V
Beam type	700*410mm
Line Speed	0~1000 M/Min.
Max. Tension of Line	500 N
Brake Torque	1600 NM
Up and Down of Beam	Pneumatic Control
Tight and Release of Beam	Pneumatic Control
Diameter of Speed Roller	120 MM
Control Type of Main Motor	Converter Control
Monitoring Way	Immediate Monitor by Microcomputer Controlled Touch Screen
Pressure of Pneumatic Source	6 Bar
Machine size	1592415002246mm
Net weight	4000kg

Main Configuration:

Main Motor	WNM of China
Converter	INVT of China
Test Components A	AUTONICS of South Korea
Test Components B	Koyo of Japan
Pneumatic Components	AIRTAC of Taiwan
PLC	MITSUBISHI of JAPAN
Touch Screen	MCGS of Beijing
Operating Components	SCHNEIDER of France
Terminal Components	PHOENIXCONTACT of Germany
Bearings	NSK of Japan

Technical Specification:

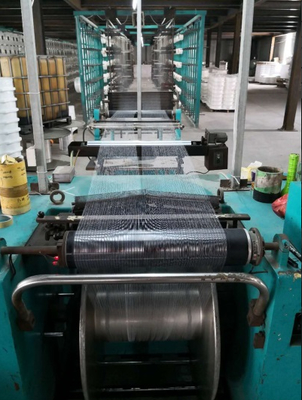

The main motor is controlled by converter. The constant and reliable digital pulse close ring controlled by the PLC guarantees the speed of winding and storing yarn is stable.
The bracket movement of beam is controlled by pneumatic, and its position is accuracy controlled by photoelectric sensor and the PLC automatically, which select the different position according to beam's diameter.
The tail bracket is controlled by pneumatic, and the shaft adepts centre fixing shaft head. These two features make the damage to inner beam caused by the shift lower down to the minimum.
The main brake adepts pneumatic butterfly brake. The breaking tray with middle unoccupied has a nice heat-dissipated function. On the other hand, the using of break pincer with auto-compensation and the hoofed piece makes the butterfly brake stable and last a long life.
The brake of Positive roller and Speed roller can make different brake pressures according to different speeds (more than 200 m/min). These different pressures, together with the main beam break, guarantees the yarn tension in the breaking time is the same as the tension under the constant speed.
