Hook And Loop Machine
>
High Output Hook And Loop Machine with 220 mm Glued Ribbon Width and 130°C ~150°C Temperature Range
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:

Industrial Hook And Loop Machine

,

220mm Hook And Loop Machine

,

Vertical hook and loop making machine

Product Description
Industrial Hook And Loop Machine With High Output And Stable Performance
Industrial Hook And Loop Coating Machine with High Output and Stable Performance
Product Information

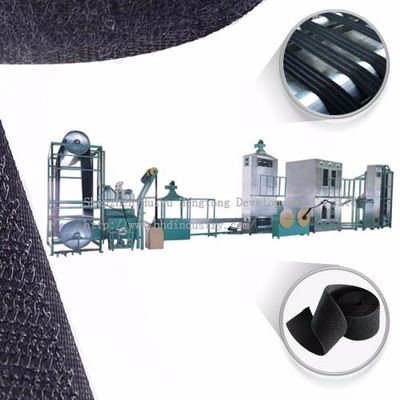

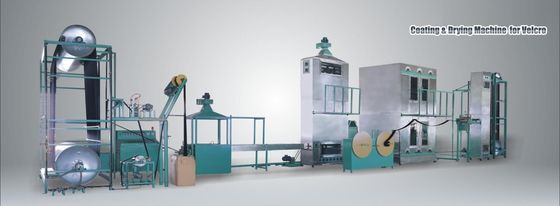

Products Name: Velcro tape gluing & coating machine
Products No.: HY-VT004, HY-VT004-1
Type: Magic Tape Equipment
Application
Designed based on 20 years of production experience, this machine is used for gluing and molding sticky ribbons. It comprises multiple functional sections and features environmental protection performance, energy efficiency, and high yield. The stainless steel construction provides heat insulation, while the frequency conversion transmission system with tension control ensures stable operation and adjustable speed.
Key Characteristics
  • Width of glued ribbon reaches 220 mm, with temperature range of 130°C ~150°C
  • Ribbon contacts roller on one side only, preserving hook and loop characteristics
  • Independent motors for each box with tension control between sections
  • Pre-drying system eliminates odors from the workshop
  • Automatic glue compensation with controlled liquid level
  • Fast cooling system for output ribbons
Main Technical Parameters
Parameter HY-VT004 HY-VT004-1 HY-VT004-2
Max width (mm) 220 220
Quantity of ribbons 1 Article 6 Article
Heater boxes type Vertical Horizontal
Speed (m/min) 30 ~ 35 40 ~ 50 120-150
Tension control Adjust
Power (kw) 11.3 15 25
Volt (V) 380/440 380/440 380/440
Occupied area (m) 15*4*4 16*5.5*5.5 18*6*6.5
Weight (kg) 6000 7500 9500
HY-VT004 Specifications
Steam roller A: Φ800*1400 mm (D*L)
Steam roller B: Φ570*1400 mm (D*L)
Coating drum: ￠250*270 mm
Former chamber: 1.3*0.62*4 m
Former chamber radiator: 1.48*0.7*0.5 m
Former chamber fan: 1 set
Rear chamber: 1.78*1.47*4 m
Rear chamber radiator: 1.54*0.8*0.54 m
Rear chamber fan: 1 set
Temperature and steam: 130°C, 4.5 kg; 155°C, 6 kg
Speed: 32 m/min
Chamber material: Inner 304 stainless steel (0.6mm); Outer normal steel (1.5mm)
Power: 11.3 kw
Machine size: 15*4*4 m
Machine weight: 6000 kg
HY-VT004 Equipment Details
S.N. Equipment Motor power (kw) Gear box Frequency converter (kw) Fan model
1 Tape feeder 0.37 1:20-60 0.75
2 Former heating roller 1.5 1:60-80 1.5
3 Coating roller 0.37 1:30-60 0.75
4 Former chamber 0.75 1:10-70 0.75
5 Rear chamber 1.5 1:20-80 1.5
6 Cooling roller 1.1 1:40-80 1.5
7 Tape winding 0.37 1:20-60 0.75
8 Former chamber fan 2.2 #3.5(1 pc)
9 Rear chamber fan 3 #4(2 pcs)
HY-VT004-1 Specifications
Steam roller A: Φ1000*2400 mm (D*L)
Steam roller B: Φ800*2400 mm (D*L)
Coating drum: ￠250*270 mm
Former chamber: 2*0.86*4.5 m
Former chamber radiator: 1.6*0.8*0.8 m
Former chamber fan: 1 set
Rear chamber: 2.2*2*4.8 m
Rear chamber radiator: 1.8*0.9*0.7 m
Rear chamber fan: 2 set
Temperature and steam: 130°C, 4.5 kg; 155°C, 6 kg
Speed: 45 m/min
Chamber material: Inner 304 stainless steel (0.6mm); Outer normal steel (1.5mm)
Power: 15 kw
Machine size: 16*5.5*5.5 m
Machine weight: 7500 kg
HY-VT004-1 Equipment Details
S.N. Equipment Motor power (kw) Gear box Frequency converter (kw) Fan model
1 Tape feeder 0.37 1:10-60 0.75
2 Former heating roller 2.2 1:40-80 2.2
3 Coating roller 0.37 1:20-60 0.75
4 Former chamber 1.5 1:10-80 1.5
5 Rear chamber 2.2 1:10-80 2.2
6 Cooling roller 1.5 1:20-80 1.5
7 Tape winding 0.37 1:10-60 0.75
8 Former chamber fan 3 #4(1 pc)
9 Rear chamber fan 4 #4(2 pcs)
