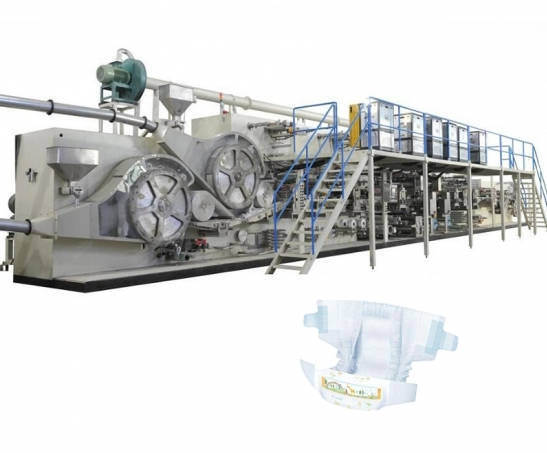

New Baby Diaper Machine - Elastic Waistband Pampers Nappy Making Line
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Control System:
Touch Screen/ Button Operation
Frame Material:
High-Strength Steel
Noise Level:
≤ 80 DB
Humidity Range:
≤ 85% RH
Automation Level:
Semi-automatic
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
Full Servo Drive Control Baby Training Pants Making Machine
,350 pcs/min Production Speed Diaper Hook Machine
,High-Strength Steel Frame Pull-Up Pants Production Line
Product Description
Product Introduction
The Elastic Waistband Baby Diaper Machine is designed to produce high-quality baby diapers with comfortable elastic waistbands. The elastic waistband provides a snug fit without causing pressure on the baby’s waist, offering maximum comfort. This design ensures a flexible, adjustable side tape, enhancing the convenience of usage and wear.
The elastic waistband nonwoven fabric used in the production is soft, highly elastic, and can either be formed directly on the production line or supplied as pre-made elastic waistband nonwoven fabric.
Key Features
- Comfortable Fit for Babies: The elastic waistband provides a gentle and comfortable fit, reducing the risk of discomfort or marks on the baby’s skin.
- Flexible Side Tape Adjustment: The design allows for easy adjustment of the side tape, ensuring a secure fit without squeezing or causing discomfort.
- Soft and Elastic Nonwoven Fabric: The high-quality nonwoven fabric used for the elastic waistband is soft to the touch and highly elastic, ensuring durability and flexibility.
- In-Line Production: The elastic waistband nonwoven fabric can be formed directly on the production line, ensuring efficiency and consistency in production.
- Customizable for Pre-made Elastic Waistbands: Alternatively, pre-made elastic waistband nonwoven fabric can be used for greater production flexibility.
Main Technical Parameters of Baby Diaper Machine
| No. | Parameter | Details |
|---|---|---|
| 1. | Product Structure | Anti-leakage N.W. (inside/outside folding), cuff elastic (3+3), top sheet, side tape N.W. (inside/outside separated position), Magic tape (available in winding), ADL, top sheet, regular core+SAP, lower tissue paper, elastic waist, leg elastic (3+3), PE sheet, back sheet, front tape. |
| 2. | Product Specification | S, M, L, XL |
| S | Length: 390mm, Width: 320mm; Core Length: 310mm, Core Width: 110mm | |
| M | Length: 450mm, Width: 320mm; Core Length: 360mm, Core Width: 110mm | |
| L | Length: 490mm, Width: 320mm; Core Length: 400mm, Core Width: 110mm | |
| XL | Length: 540mm, Width: 320mm; Core Length: 450mm, Core Width: 110mm | |
| 3. | Design Speed | 600 pcs/min (M) |
| 4. | Stable Production Speed | 500 pcs/min |
| 5. | Center Distance of Production Line | Referring to distance between the center line of product material and main frame plate, 300mm |
| 6. | Distribution of Raw Materials | The surface layer of the compound surface of non-woven fabric is the core body. |
| 7. | Product Weight Tolerance | ±5% |
| 8. | Rate of Finished Product | ≥98% (not including the defective products caused by glue applicators, feeding of raw materials, and joints of raw materials) |
| 9. | Efficiency Range | ≥85% |
| 10. | Power | 300KW |
| 11. | Weight | 72T |
| 12. | Electric Supply | 380V ±5%, 50HZ |
| 13. | Dimension | 22.3m × 2.3m × 3.5m (L × W × H, Includes crusher) |
| 14. | Air Pressure | 0.6-0.8Mpa (Buyer needs to prepare the air source) |
| 15. | Working Direction of Machine | To be decided by buyer |
| 16. | Color | Depends on customer's requirement |
Spare Parts of Baby Diaper Making Machine
| Spare Part | Brand |
|---|---|
| PLC | Mitsubishi |
| Touch Screen | Mitsubishi |
| Servo Control Drive | Mitsubishi |
| Auto Web Controller | BST |
| Bearing | NSK/NTN |
| Timing Belt | Gates/Tiger |
| Flat Belt | Nitta/Tiger |
| Cylinder/Magnetic Valve | Airtac |
Why Choose Our Elastic Waistband Baby Diaper Machine?
- Comfort for Babies: Ensures a soft, snug fit that enhances comfort and minimizes discomfort.
- Efficient Production: In-line manufacturing of elastic waistbands ensures streamlined production, reducing labor costs and increasing productivity.
- Customizable and Flexible: The machine is designed to handle a variety of sizes and allows for the use of pre-made elastic waistbands, providing flexibility for different market needs.
- Certified Quality: Built to the highest standards with CE certification for safety and reliability.
