High Precision Velcro Injection Hook Molding Machine with Stable Operation and Touch Screen Control

Brand Name:	HHD
MOQ:	1set
Price:	1000–200000USD
Payment Terms:	T/T 50% in advance,50% before shipment
Supply Ability:	150 sets / month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong Province

Control System:

Touch Screen/ Button Operation

Frame Material:

High-Strength Steel

Noise Level:

≤ 80 DB

Humidity Range:

≤ 85% RH

Automation Level:

Semi-automatic

Packaging Details:

Export Packaging

Delivery Time:

Within 20 days after downpayment

Product Description

High Precision Velcro Injection Hook Molding Machine With Stable Operation

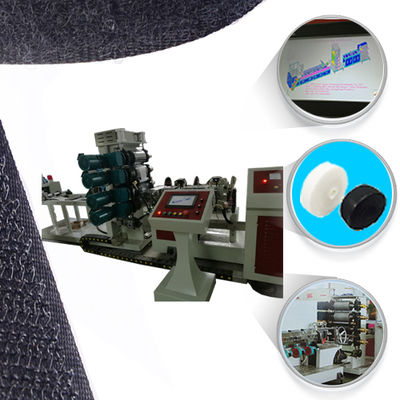

The HHD Series Injection Hook Production Line is a specialized, high-efficiency system designed for producing Velcro plastic hook tapes. It employs advanced extrusion technology and a unique mold rolling process, fully compatible with materials such as PP, PA6, PE, PVC, TPU, and other nylon-based compounds.

Key Features

Integrated system with #2, #3, and #4 molds plus auxiliary equipment

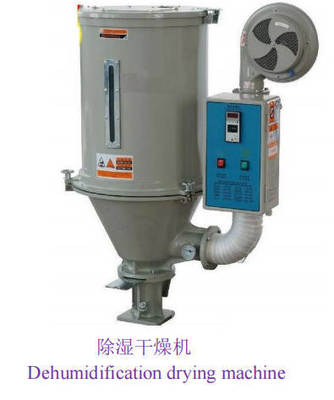

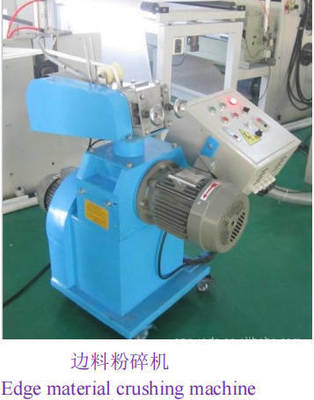

Includes dehumidifier dryer, mixer, edge material grinder, and sub-machines
Japan RKC PID temperature controllers with melt pressure/temperature sensors
ABB frequency inverters and Siemens control unit for reliable performance

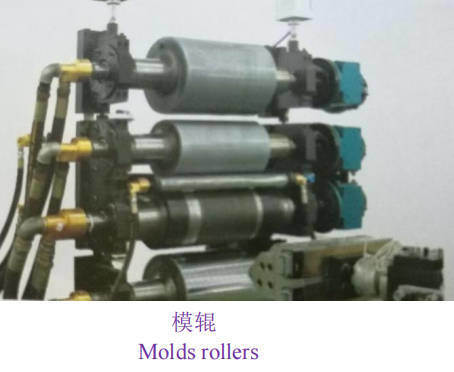

Sheet three-roll polishing machine with quenched mirror rolls (customizable)
Hanger-style die head structure with center coiling winding method
Water heating system for calender rollers ensures consistent operation

Available in widths from 100 to 600mm with extrusion capacity from 5 to 250kg/h. Custom configurations available to meet specific production requirements.

Technical Specifications

Specification	HY-VT160	HY-VT300
Linear speed	10～25 m/min	10～25 m/min
Extrusion capacity	50-80 kg/h	150 kg/h
Sheet thickness	0.2-2 mm	0.3-1.8 mm
Max width	160 mm	160 mm
Principal motor power	70 kW	230 kW
Monitoring	Transducer control	Transducer control
Air pressure	6 bar	6 bar
