| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 2000–20000USD |
| Payment Terms: | T/T 50% in advance,50% before shipment |
| Supply Ability: | 150 sets / month |

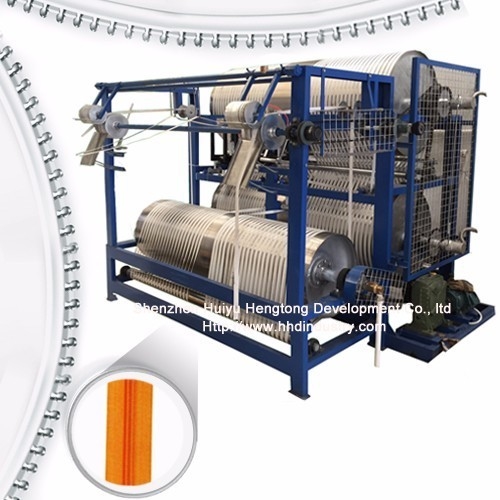

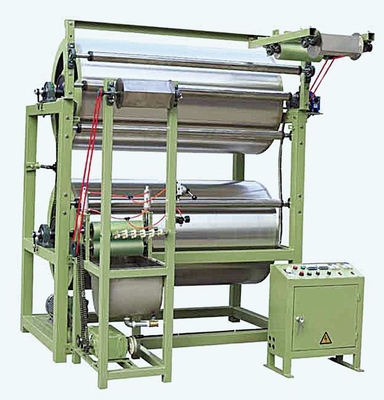

Nylon Zipper Ironing Machine
| Machine model | XY-T1000 |
|---|---|
| Stainless steel dry drum size | Φ1000mm*2000mm*2 |
| Cooling drum size | Φ570mm*2000mm*1 |
| Operating Temperature | 140-200℃ |
| Motor | 4KW Variable speed motor with 120 # turbo reducer with a speed control device |
| Capacity | Drying two pcs zipper at same time; machine speed can be adjusted according to customer requirement |
| Body stand | SS41 * 12 # channel steel |
| Output cooling stand | SS41 * 5 # steel angle iron |
| Pressure gauge | 10Kg / cm2 * 1 pcs |
| Steam rotary joint | Φ1 "* 2 pcs |
| Cooling water Rotary joint | Φ1" * 2 pcs |
| Steam inlet shut-off valve | 10Kg / cm2 * Φ1 " * 1 pcs |
| Safety valve | 10Kg / cm2 * Φ1 " * 1 pcs |
