Nylon Zipper Ironing Machine with 1.5–3.0 kW Motor Power, 500-hour Maintenance Cycle, and Φ1000mm*2000mm*2 Dry Drum for Efficient Zipper Tape Ironing
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–20000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
Detail Information
Place of Origin:
Guangdong Province
Applications:
Apparel, Footwear,Industrial Manufacturing
Automation Level:
Semi-automatic
Control System:
Touch Screen/ Button Operation
Motor Power:
1.5–3.0 KW
Frame Material:
High-Strength Steel
Control Method:
Electronic Control + Manual Adjustment
Maintenance Cycle:
Recommended Every 500 Hours
Delivery Time:
Within 20 days after downpayment
Supply Ability:
150 sets / month
Highlight:
nylon core line making machine
,nylon zipper core line making machine
,footwear nylon zipper machine
Product Description

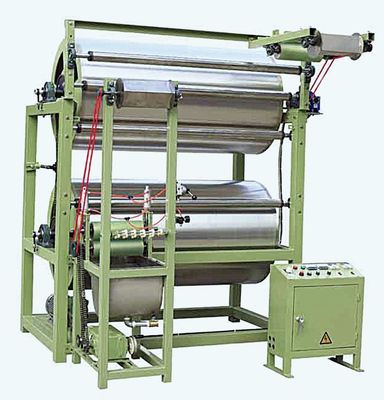

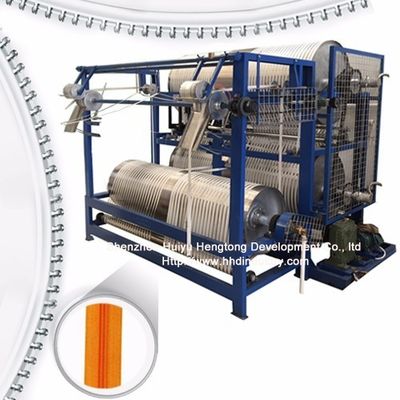

Nylon Zipper Ironing Machine
Machine Characteristics
This high-performance ironing machine is designed for all types of zipper tape, offering efficient drying and ironing capabilities in a compact footprint.
- Three heating mode options: steam, electric heating, and heat conduction oil
- Equipped with high-speed motor and speed control frequency converter for adjustable ironing cylinder speed
- Cold water circulation cooling roller prevents deformation after drying
- Specifically designed for metal zipper tape ironing
- Compact design with easy operation
Technical Specifications
| Specification | Details |
|---|---|
| Machine Model | XY-T1000 |
| Stainless Steel Dry Drum Size | Φ1000mm × 2000mm × 2 |
| Cooling Drum Size | Φ570mm × 2000mm × 1 |
| Operating Temperature | 140-200℃ |
| Motor | 4KW Variable speed motor with 120 # turbo reducer and speed control device |
| Capacity | Dries two zippers simultaneously with adjustable speed |
| Body Stand | SS41 × 12 # channel steel |
| Output Cooling Stand | SS41 × 5 # steel angle iron |
| Pressure Gauge | 10Kg/cm² × 1 pc |
| Steam Rotary Joint | Φ1" × 2 pcs |
| Cooling Water Rotary Joint | Φ1" × 2 pcs |
| Steam Inlet Shut-off Valve | 10Kg/cm² × Φ1" × 1 pc |
| Safety Valve | 10Kg/cm² × Φ1" × 1 pc |
