| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 2000–20000USD |
| Payment Terms: | T/T 50% in advance,50% before shipment |
| Supply Ability: | 150 sets / month |

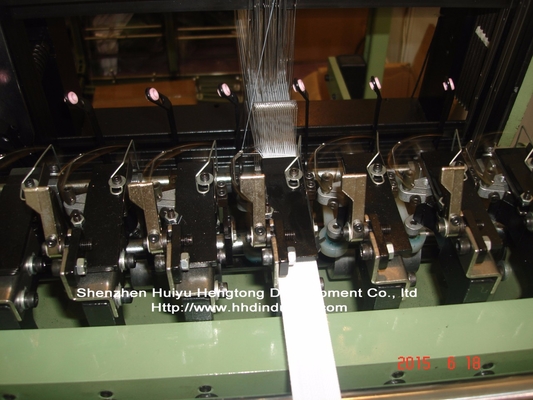

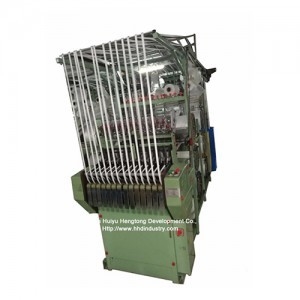

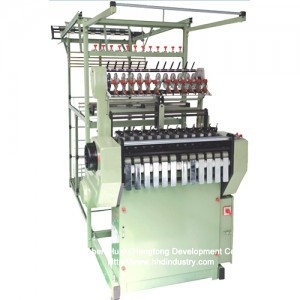

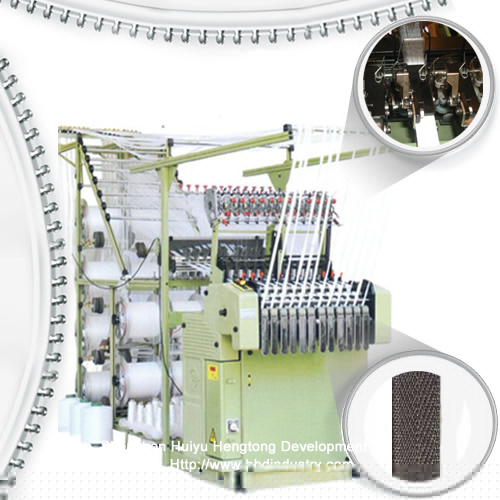

High Speed Nylon Zipper Tape Weaving Machine
Special-type machine for producing many kinds of zipper belts, such as metal, resin and nylon zipper belts.
| Items | XY-8/30 | XY-10/30 | XY-12/25 | XY-14/20 |
|---|---|---|---|---|
| Machine width | 560 | 610 | 610/730 | 610/730 |
| Belts | 8 | 10-20 | 12-24 | 14 |
| Reed width | 30 | 30 | 25 | 20 |
| Head frame | 6 | 6-20 | 6-20 | 6-20 |
| Chain repeat | 8-48 | 8-48 | 8-48 | 8-48 |
| Weft density(/cm) | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 |
| Speed | 1200-1600 | 1200-1600 | 1200-1600 | 1200-1600 |
| Mainly motor power | 1.5HP | 1.5HP | 1.5HP | 1.5HP |
| Volt | 380 | 380 | 380 | 380 |
| Net weight | 360 | 400kg | 400kg | 400kg |
| Gross weight | 400 | 450kg | 450kg | 450kg |
| Machine size | 370*100*200 | 370*105*200 | 370*105*200 | 370*105*200 |
| Packing size | 185*105*205 | 185*105*205 | 185*105*205 | 185*105*205 |
