350mm Injection Hook Equipment with 90-150 kg/h Extrusion Capacity and 0.3-1.8 mm Sheet Thickness for Hook Production Line
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 1000–200000USD |
| Packaging Details: | Export Packaging |
| Payment Terms: | T/T 50% in advance,50% before shipment |
|
Place Of Origin: |
Guangdong Province |
Applications: |
Apparel,Footwear,Industrial Manufacturing |
|
Automation Level: |
Semi-automatic |
Control System: |
Touch Screen/ Button Operation |
|
Frame Material: |
High-Strength Steel |
Control Method: |
Electronic Control + Manual Adjustment |
|
Noise Level: |
≤ 80 DB |
Humidity Range: |
≤ 85% RH |
|
Delivery Time: |
Within 20 Days After Downpayment |
Supply Ability: |
150 Sets / Month |
|
Highlight: |
Injection Moulding Hook And Loop Machine,350mm Hook And Loop Machine,150kg/H Hook And Loop Making Machine |
||
|
Place Of Origin: |
Guangdong Province |
Applications: |
Apparel,Footwear,Industrial Manufacturing |
|
Automation Level: |
Semi-automatic |
Control System: |
Touch Screen/ Button Operation |
|
Frame Material: |
High-Strength Steel |
Control Method: |
Electronic Control + Manual Adjustment |
|
Noise Level: |
≤ 80 DB |
Humidity Range: |
≤ 85% RH |
|
Delivery Time: |
Within 20 Days After Downpayment |
Supply Ability: |
150 Sets / Month |
|
Highlight: |
Injection Moulding Hook And Loop Machine,350mm Hook And Loop Machine,150kg/H Hook And Loop Making Machine |
||
Key Features
▪ Supports multiple materials including PP, PA6, PA66, PE, and nylon-based resins
▪ Fully automated continuous operation capability
▪ Standard line includes #2, #3, and #4 molds

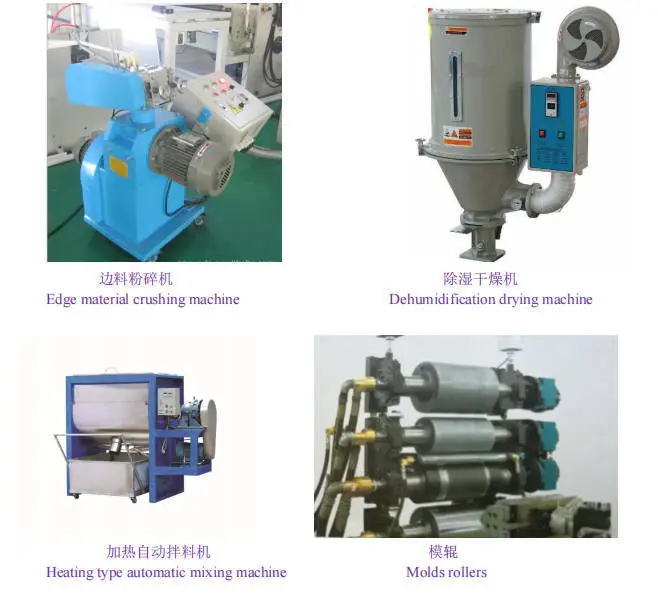

▪ Includes dehumidification drying machine, automatic mixing machine, and edge material crushing machine
▪ Powered by ABB inverters with Japan RKC PID controller
▪ Sieme PLC control system for intelligent operation
▪ Three-roller calendering system with quenched mirror rollers
▪ Water heating for thermal stability
▪ Hanger-type mold design with center winding system
Technical Specifications
| Item | Specification |
| Model | HY-VT350 |
| Linear Speed | 10～25 M/Min |
| Extrusion Capacity | 90-150 Kg/H |
| Sheet Thickness | 0.3-1.8 Mm |
| Base Sheet Minimum Thickness | 0.1 Mm |
| Max Product Width | 350 Mm |
| Main Motor Power | 100 KW |
| Power Consumption | 50-60 KW |
| Control System | PLC Automatic Control |
| Air Pressure | 6 Bar |
| Machine Dimensions | 14, 000 * 3, 000 * 2, 400 Mm |
| Machine Weight | 75, 000 Kg |
Customization Options
Key Features
▪ Supports multiple materials including PP, PA6, PA66, PE, and nylon-based resins
▪ Fully automated continuous operation capability
▪ Standard line includes #2, #3, and #4 molds
▪ Includes dehumidification drying machine, automatic mixing machine, and edge material crushing machine
▪ Powered by ABB inverters with Japan RKC PID controller
▪ Sieme PLC control system for intelligent operation
▪ Three-roller calendering system with quenched mirror rollers
▪ Water heating for thermal stability
▪ Hanger-type mold design with center winding system
Technical Specifications
| Item | Specification |
| Model | HY-VT350 |
| Linear Speed | 10～25 M/Min |
| Extrusion Capacity | 90-150 Kg/H |
| Sheet Thickness | 0.3-1.8 Mm |
| Base Sheet Minimum Thickness | 0.1 Mm |
| Max Product Width | 350 Mm |
| Main Motor Power | 100 KW |
| Power Consumption | 50-60 KW |
| Control System | PLC Automatic Control |
| Air Pressure | 6 Bar |
| Machine Dimensions | 14, 000 * 3, 000 * 2, 400 Mm |
| Machine Weight | 75, 000 Kg |
Customization Options
