| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 2000–20000USD |
| Payment Terms: | T/T 50% in advance,50% before shipment |
| Supply Ability: | 150 sets / month |

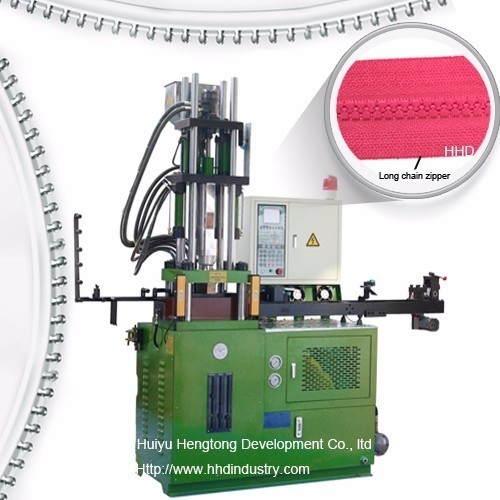

Auto Plastic Zipper Teeth Planting Machine
| DESCRIPTION | UNIT | XY-601R-C |
|---|---|---|
| INJECTION UNIT | ||
| Screw Diameter | mm | φ28 |
| Maximum Injection Pressure | Bar | 1570 |
| Theoretical Shot Volume | cm3 | 61 |
| Maximum Shot Weight(PS) | g | 54 |
| Maximum Shot Weight(PS) | oz | 1.9 |
| Injection Rate | cm3/sec | 53 |
| CLAMPING UNIT | ||
| Clamping Force | kN | 400 |
| Top Platen Size | mm | 490×350 |
| Bottom Platen Size | mm | 535×405 |
| Mold Size | mm | 405×275 |
| Minimum Mold Thickness | mm | 200 |
| Opening Stroke | mm | 200 |
| Open Daylight | mm | 400 |
| Ejector Force | kN | 13 |
| Ejector Stroke | mm | 39 |
| OTHERS | ||
| Hydraulic System Pressure | Bar | 140 |
| Oil Tank Volume | L | 140 |
| Electric Power | hp(kW) | 7.5(5.5) |
| Barrel Heating Power | kW | 4.5 |
| Total Wattage | kW | 10 |
| Machine Dimensions (approx.) | m | 2.8×0.7×2.8 |
| Machine Weight (approx.) | kg | 2500 |
