| Brand Name: | HHD |
| MOQ: | 1set |
| Price: | 2000–20000USD |
| Payment Terms: | T/T 50% in advance,50% before shipment |
| Supply Ability: | 150 sets / month |

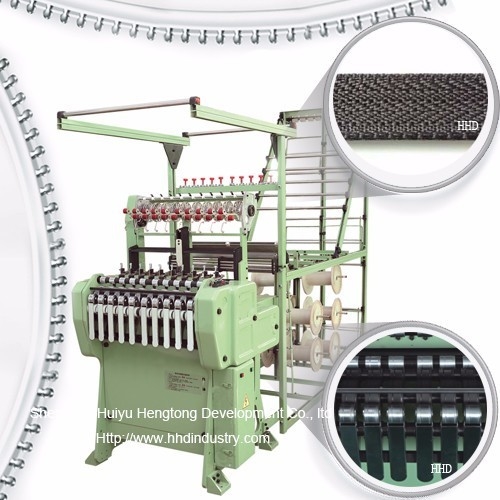

High Speed Metal Zipper Tape Making Machine
This shuttleless loom is designed with advanced technoogies from abroad. It has more reasonable and more superior structure. It enjoys smaller size and beautiful shape.
The machien adopts a special brake motor and reliable safety devices. The heald fram moves smoothly and the weft feeding speed is adjustable.
Double-layer weaving function can be achieved with relevant accessories equipped. The machine is also fitted with overlocking devices.
The shuttleless weaving machien covers needs for various band widths. It takes silk, cotton, linen, chemical fiber as raw materials.
| Model | XY-8/30 | XY-10/30 | XY-12/25 | XY-14/20 |
|---|---|---|---|---|
| Machine width | 560 | 610 | 610/730 | 610/730 |
| Belts | 8 | 10-20 | 12-24 | 14 |
| Reed width | 30 | 30 | 25 | 20 |
| Head frame | 6 | 6-20 | 6-20 | 6-20 |
| Chain repeat | 8-48 | 8-48 | 8-48 | 8-48 |
| Weft density | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 | 3.5-36.7 |
| Speed | 1200-1600 | 1200-1600 | 1200-1600 | 1200-1600 |
| Mainly motor power | 1.5HP | 1.5HP | 1.5HP | 1.5HP |
| Volt | 380 | 380 | 380 | 380 |
| Net weight | 360 | 400kg | 400kg | 400kg |
| Gross weight | 400 | 450kg | 450kg | 450kg |
| Machine size | 370*100*200 | 370*105*200 | 370*105*200 | 370*105*200 |
| Packing size | 185*105*205 | 185*105*205 | 185*105*205 | 185*105*205 |
Address
Room 301, Building 83, Liantai Property Factory, Baoshan Second Industrial Park, Liuhe Community, Pingshan Street, Pingshan District, Shenzhen, Guangdong, China
Tel
86--13510363428
